Chapter 2 103
Adjustment Procedures
12. 10 MHz Reference Adjustment-TCXO (Option 103)
12. 10 MHz Reference Adjustment-TCXO
(Option 103)
Assembly Adjusted
A15 RF assembly
Related Performance Test
10 MHz Reference Output Accuracy
Description
The frequency counter is connected to the CAL OUTPUT, which is
locked to the 10 MHz reference. This yields better effective resolution.
The temperature-compensated crystal oscillator (TCXO) is adjusted for
a frequency of 300 MHz as read by the frequency counter.

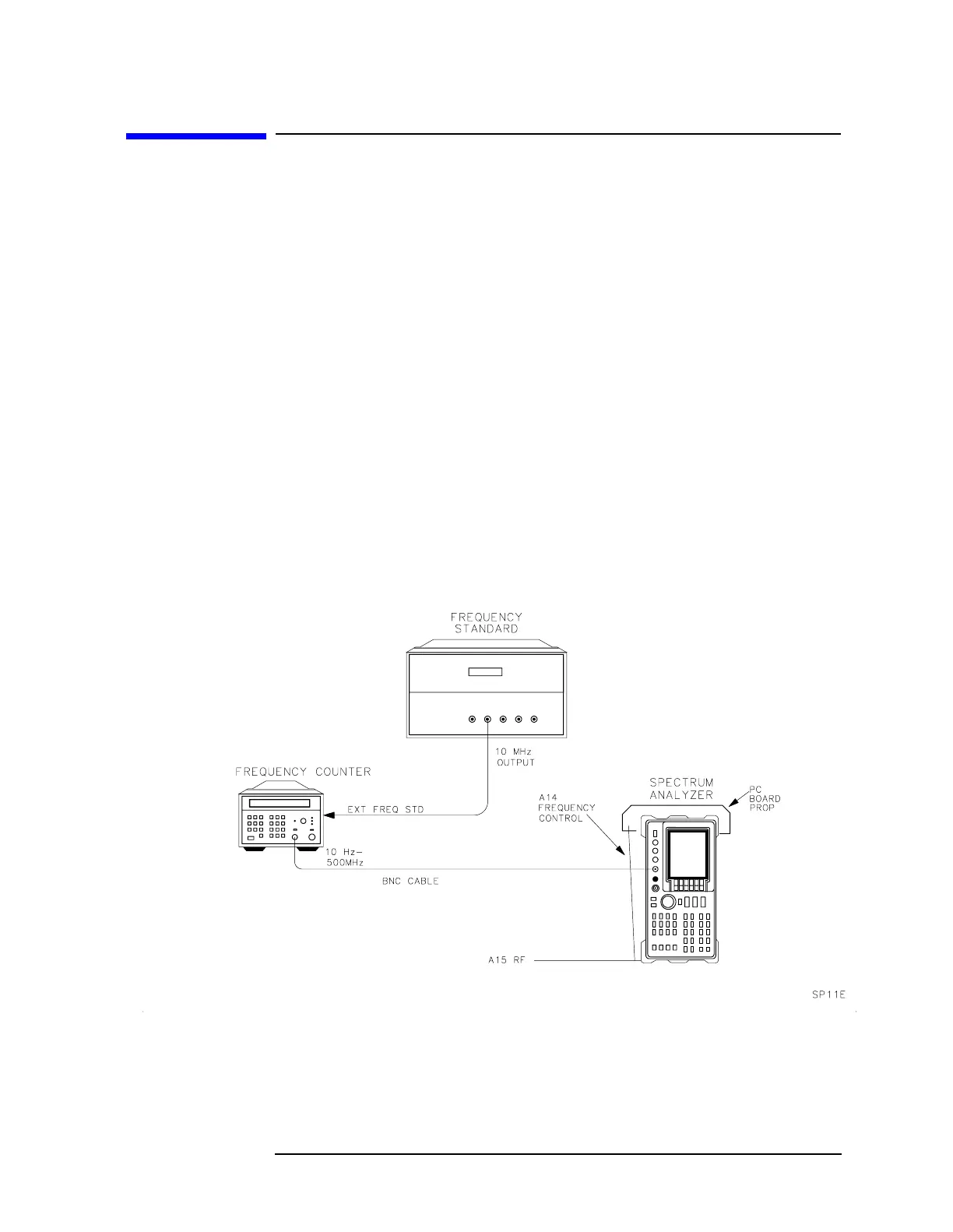

Figure 2-17 10 MHz Frequency Reference Adjustment Setup
