3-58 ES User’s Guide
Making Measurements
Making a Power Measurement using Broadband Detection
2. Set the following frequency parameters:
3. Press or .
This stores the data into memory and divides subsequent
measurements by the stored data to remove frequency response
errors.
4. Insert the amplifier as shown in Figure 3-23.
Connect the DUT

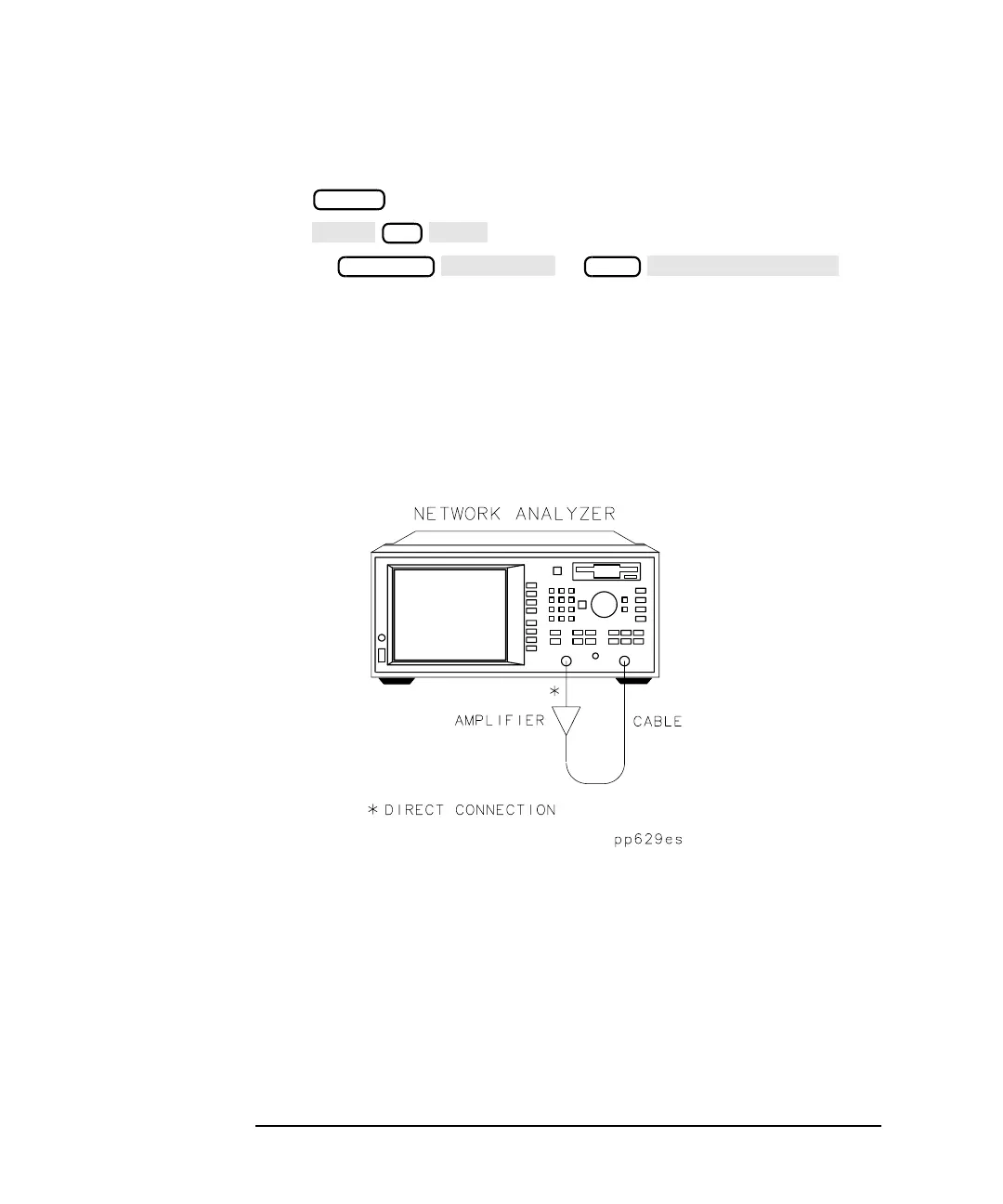

Figure 3-23 Equipment Setup for a Power Measurement
