3-60 ES User’s Guide
Making Measurements
Making a Power Measurement using Broadband Detection

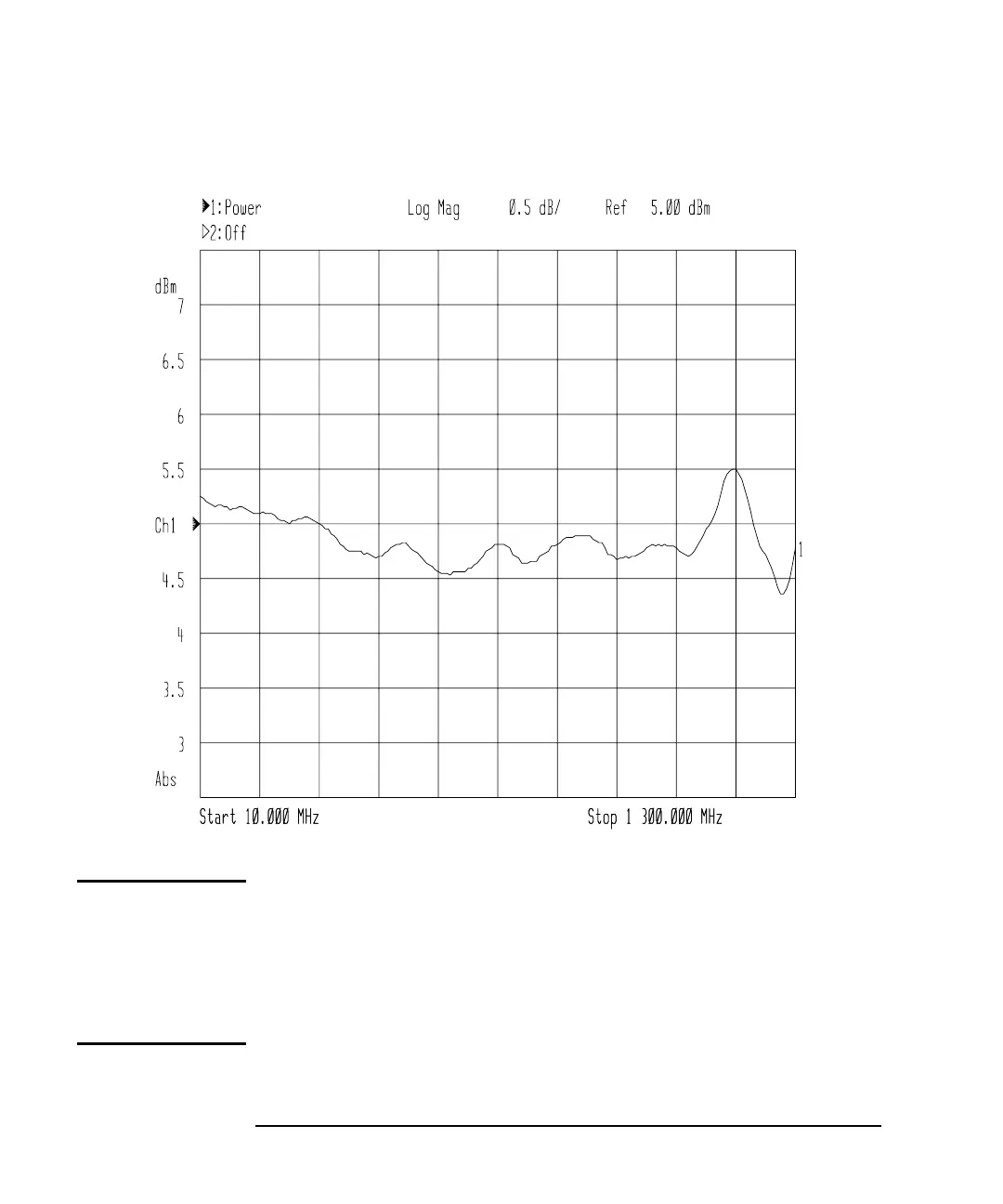

Figure 3-24 Example of a Power Measurement
CAUTION If the analyzer's RF output power level is set to higher than the specified
output power for your analyzer, the source could go unleveled. See
Chapter 9, “Specifications,” for source and receiver specifications. If your
device requires input power greater than your analyzer's specified
output power, you may need to use a preamplifier in your measurement
setup. However, remember to not exceed the receiver damage limit of
+26 dBm.
