30
===========================<Enter Serial SubMenu>===========================
|Note:the operating device is flash |
|<1> Download Application Program To SDRAM And Run |
|<2> Update Main Application File |
|<3> Update Backup Application File |
|<4> Update Secure Application File |
|<5> Modify Serial Interface Parameter |
|<0> Exit To Main Menu |
============================================================================
Enter your choice(0-5):
9. Select an option from options 2 to 4 to upgrade a system software image. For example, enter 2
to upgrade the main system software image.
Please Start To Transfer File, Press <Ctrl+C> To Exit.
Waiting ...CCCCC

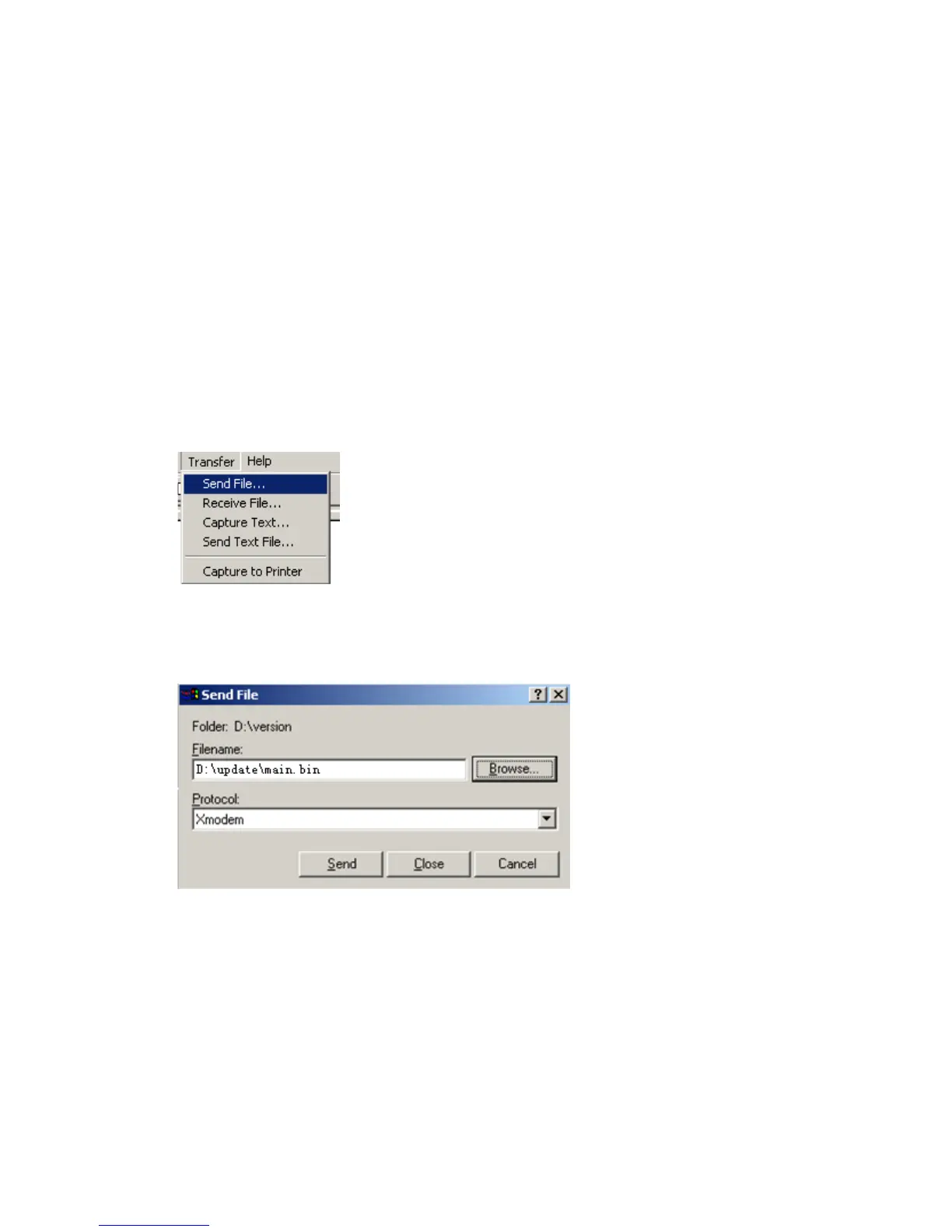

10. Select Transfer > Send File in the HyperTerminal window.
Figure 6 Transfer menu
11. In the dialog box that appears, click Browse to select the source file, and select
Xmodem from the Protocol list.
Figure 7 File transmission dialog box
12. Click Send. The following dialog box appears:
