A-Class Server Trouble Shooting
Chapter 3
67
NOTE The LED pattern is only valid if the Firmware Main Menu is not displayed at the
Console.
Second Level Cache/RAM Memory Module Faults
Second Level Cache Memory Module Fault. This fault occurs when a Second Level
Cache (SLC) failure prevents the system from completing selftest. Chassis codes
provided by the HSC Remote Management card are useful in troubleshooting this type of
error. For example, the fault FLT 2120 chassis code message indicates: “Second Level
cache selftest” failure.
NOTE SIMM is an acronym for Single Inline Memory Module. A SIMM has components on one
side of the card, only.DIMM is an acronym for Dual Inline Memory Module. A DIMM has
components on both sides of the card.The acronym SIMM will be used throughout this
section to refer to either SIMM or DIMM.
Electrostatic Discharge Precautions. The procedures in this section require opening the
server and exposing the system to electrostatic discharge. Always observe all electrostatic
precautions when working with components inside or out of the server. Failure to follow these
precautions may result in component damage or loss of system reliability.

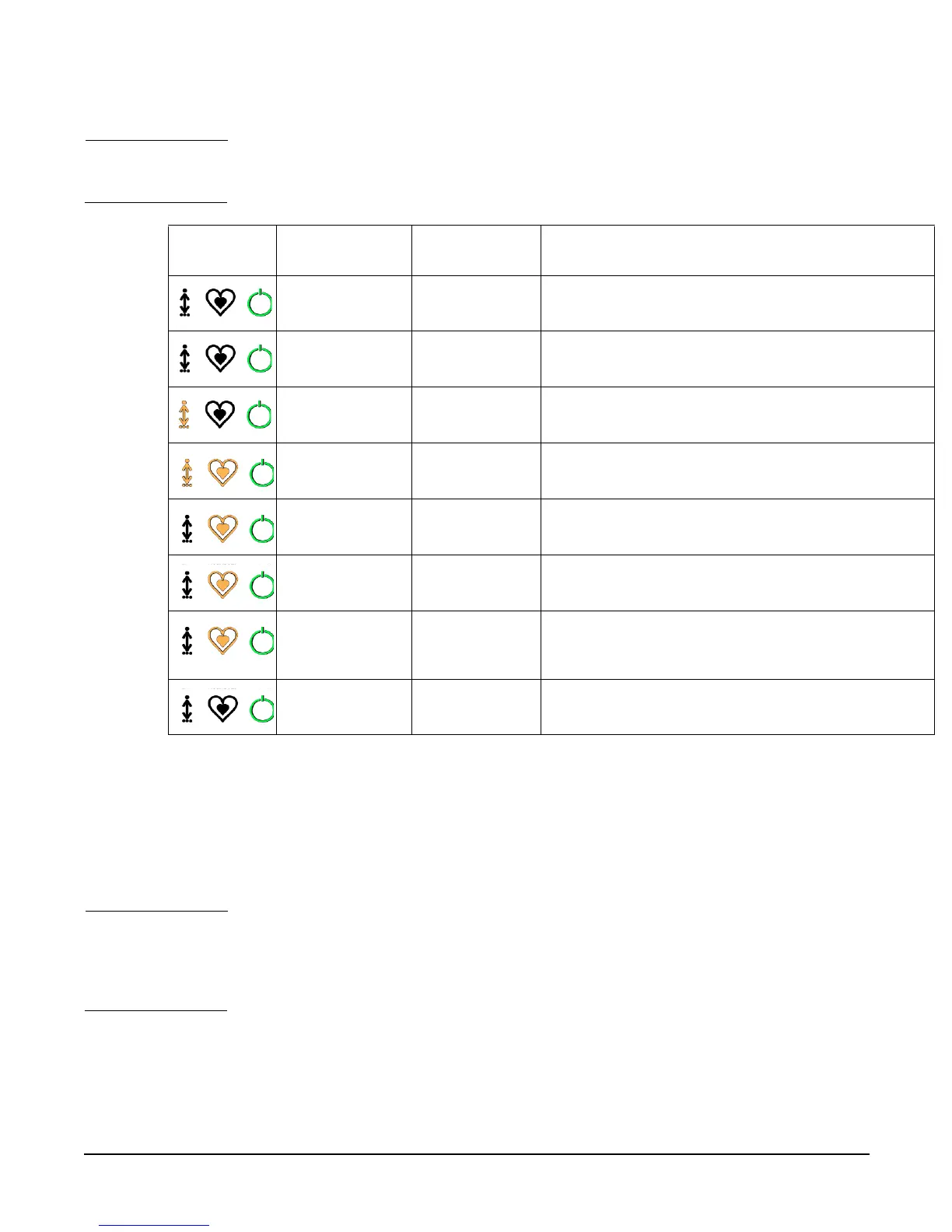

LAN LED Heartbeat
LED
Indication
Random Blink
Pattern
Heartbeat
Blink Pattern
Normal Operation (Under HP-UX)
Off Off 2nd Level Cache SIMM fault
On (Steady) Off Memory SIMM fault
On (Steady On (Steady) I/O Subsystem or I/O Board fault
Off On (Steady) System board fault, HPMC or Unknown fault
Blinking On (Steady) I/O HPMC fault
Blinking
opposite of
Heartbeat LED
Blinking
opposite of
LAN LED
Memory HPMC fault (When LAN is ON, Heartbeat
is OFF. When Heartbeat is ON, LAN is OFF)
Off Heartbeat
Blink pattern
2nd Level Cache HPMC fault
