A-Class Server Disk Drive Removal and Replacement
Chapter 3
94
b. Note the disk drive jumper settings on the front of the drive that you are removing in
order to reset the replacement drive to the same jumper configuration.

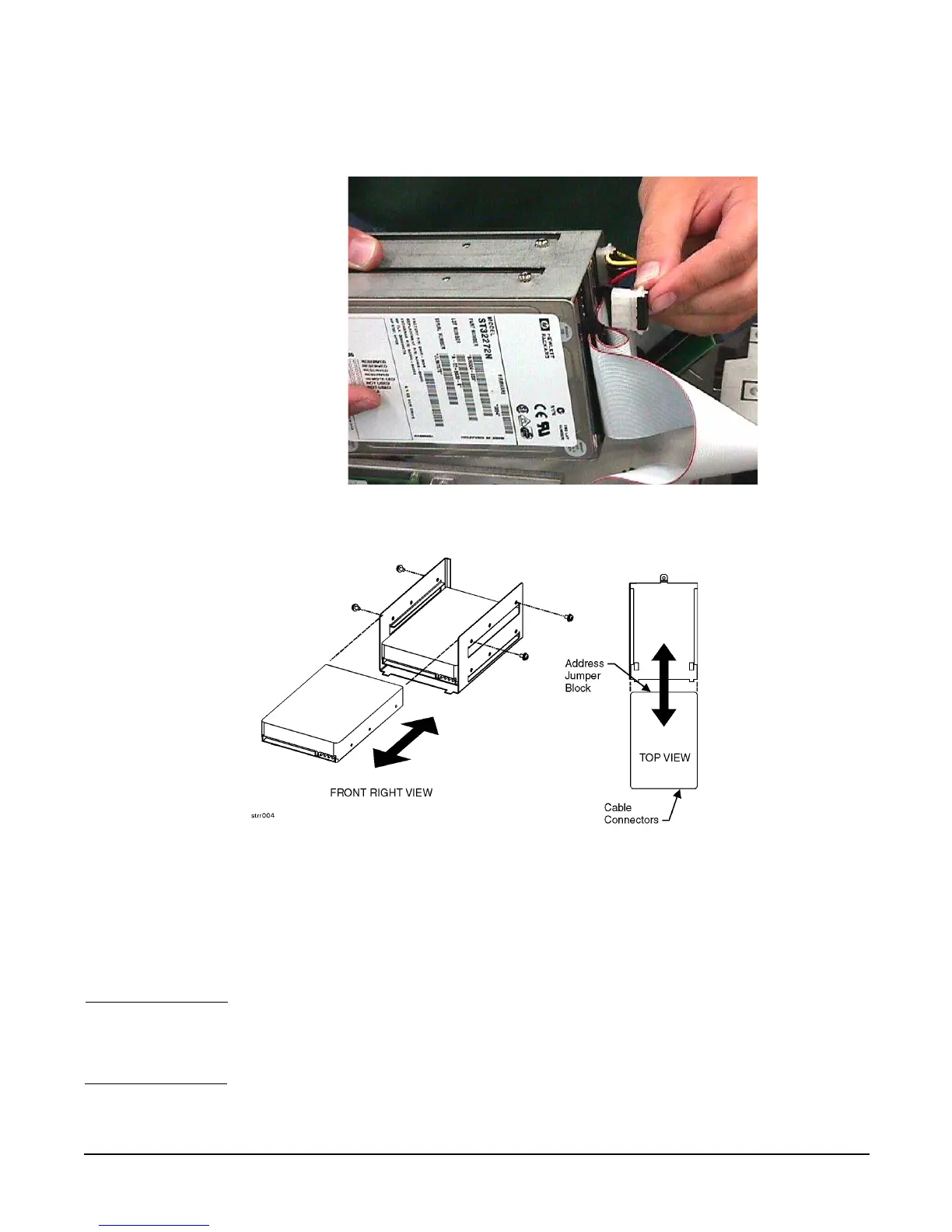

Step 2. Remove the screws from the bracket on both sides of the defective disk drive.
a. If the defective disk drive is on top, either slide the unit out of the bracket or lift it
straight up.
b. If the defective disk drive is on the bottom, slide the unit out of either end of the
bracket.
Disk Drive Replacement
CAUTION DO NOT install a single disk drive on the top rails of the bracket. Always install a single
disk drive on the bottom rails. Failure to follow this precaution may cause damage due to
excessive vibration.
