A-Class System Service
A-Class Server Cache Memory Removal and Replacement
Chapter 3
89
Step 5. Remove the top of the server by unscrewing the knurled captive screws on each side of
the rear of the server. Slide the top back, lift it off, and set it aside.
Cache Memory Removal
CAUTION Always handle Cache Memory boards by their edges. Failure to comply with this
precaution may result in damage to the board.
Step 1. Open the ejector levers (down position) on each side of the Cache Memory board.
Step 2. Grasp the Cache Memory by the edges and lift straight up
Step 3. Set it carefully on the grounding mat.
Cache Memory Replacement
CAUTION Keep Cache Memory boards in their protective anti-static bags until you are ready to
install them. Always handle Cache Memory boards by their edges after you have
removed them from their protective anti-static bags. Be sure that an anti-static wrist
strap is still attached to your wrist and grounded to the server main chassis when you
handle and install Cache Memory boards. Failure to follow these precautions may cause
damage to the Cache Memory.
NOTE There is no order of precedence for installing Cache Memory boards. The two boards may
be installed in any order and do not have to be replaced in pairs if the defective board can
be isolated. Otherwise, replace the pair of boards.

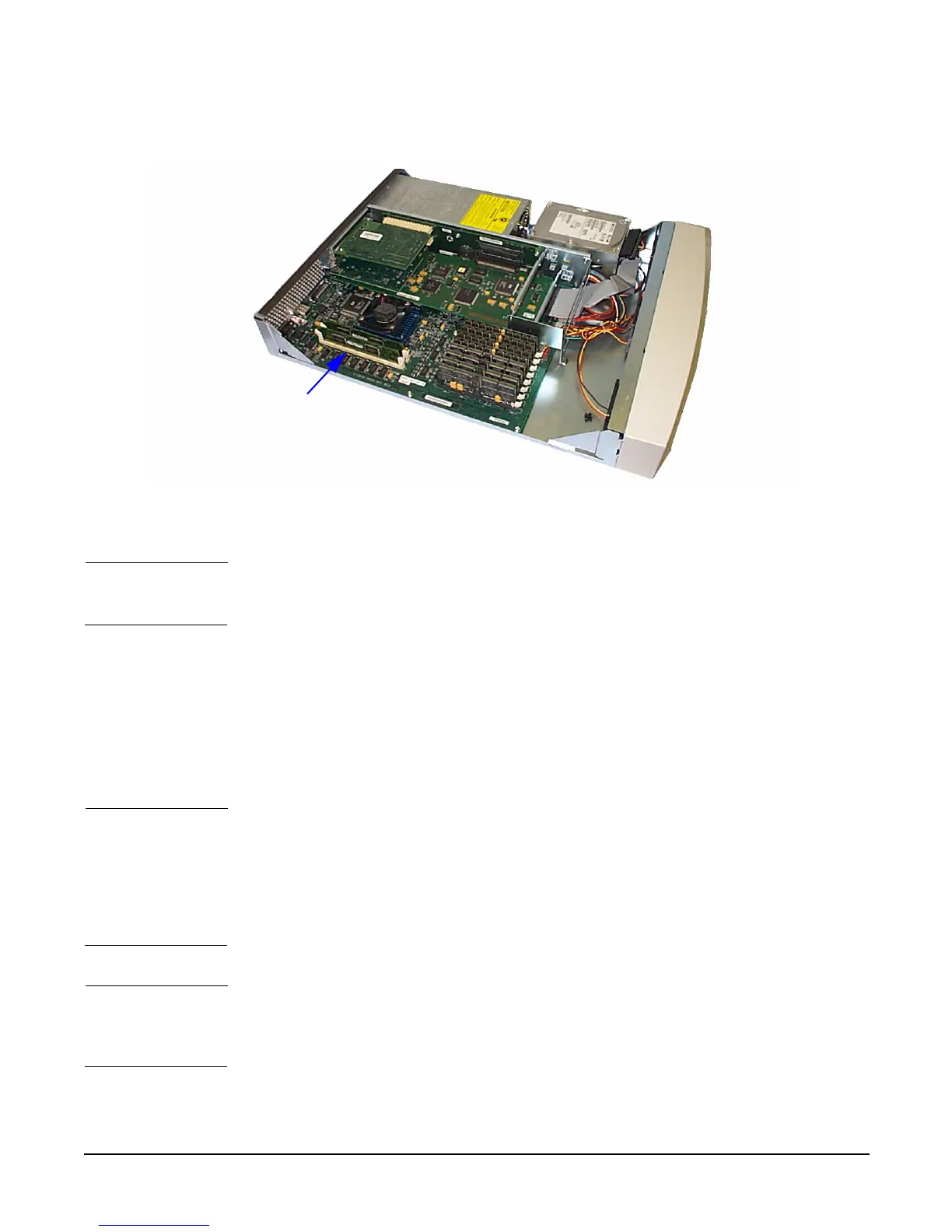

Memory
Cache
To Next Page
