HP A5120 EI Series

31
4. In the Properties dialog box (Figure 35), set Bits per second to 9600, Data bits to 8, Parity to
None, Stop bits to 1, and Flow control to None, and click OK.

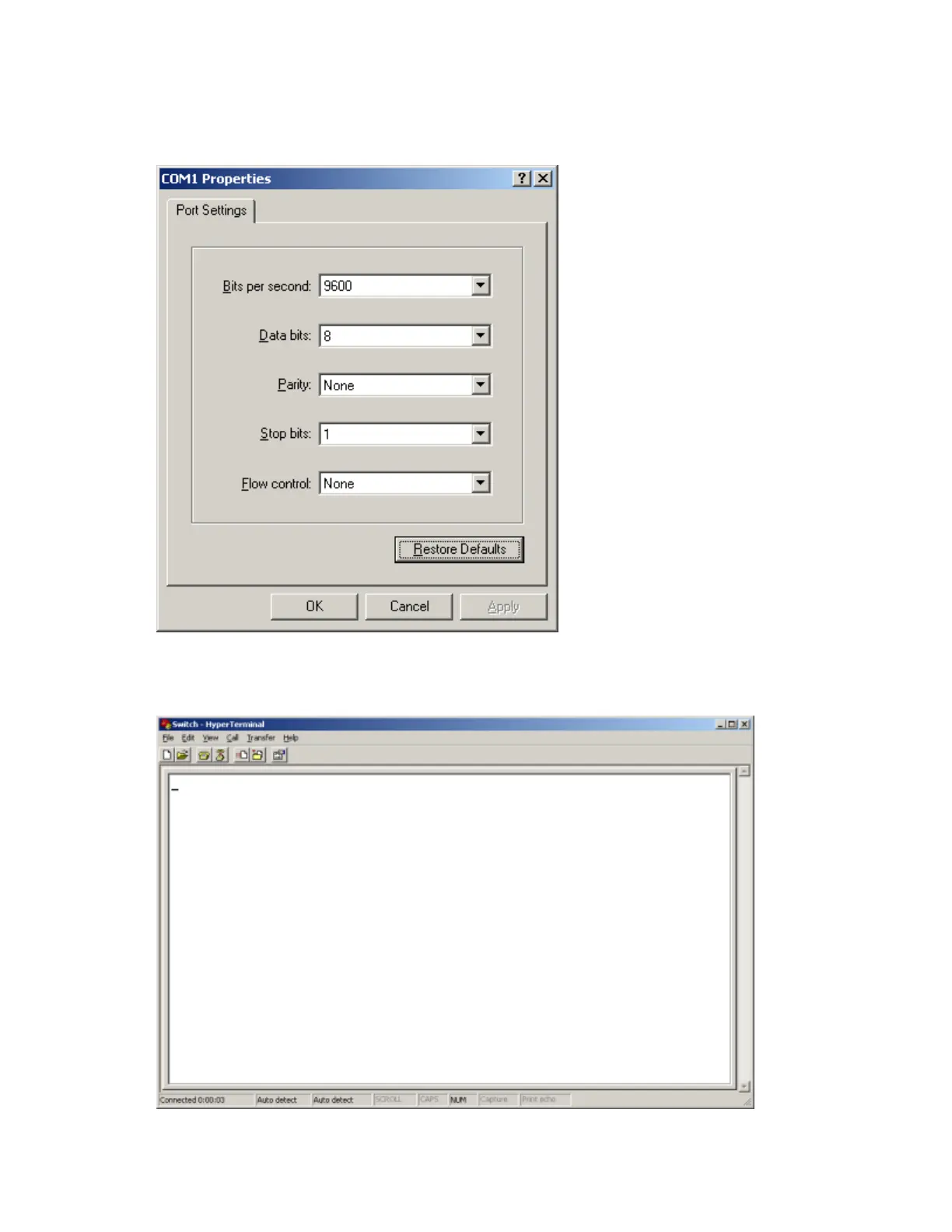

Figure 35 Setting the serial port parameters
5. Select File > Properties in the HyperTerminal window (Figure 36).
Figure 36 HyperTerminal window
