Installing Hardware Options
To install an ATA hard drive:
1. Access internal server components. Refer to the “Accessing Internal Server
Components” section earlier in this chapter.
2. Set the jumpers on the ATA hard drive to Cable-Select mode. Refer to the
documentation included with the hard drive option kit.
CAUTION: Whenever installing hardware or performing maintenance
procedures requiring access to internal components, it is recommended that all
server data be backed up to avoid loss.
3. Remove the PCI riser board assembly. Refer to the “Removing the PCI Riser
Board Assembly” section earlier in this chapter.
4. Remove the center wall. Use the following procedure to remove the center wall:
a. Disconnect the center wall fan cables from the fan connectors on the system
board.

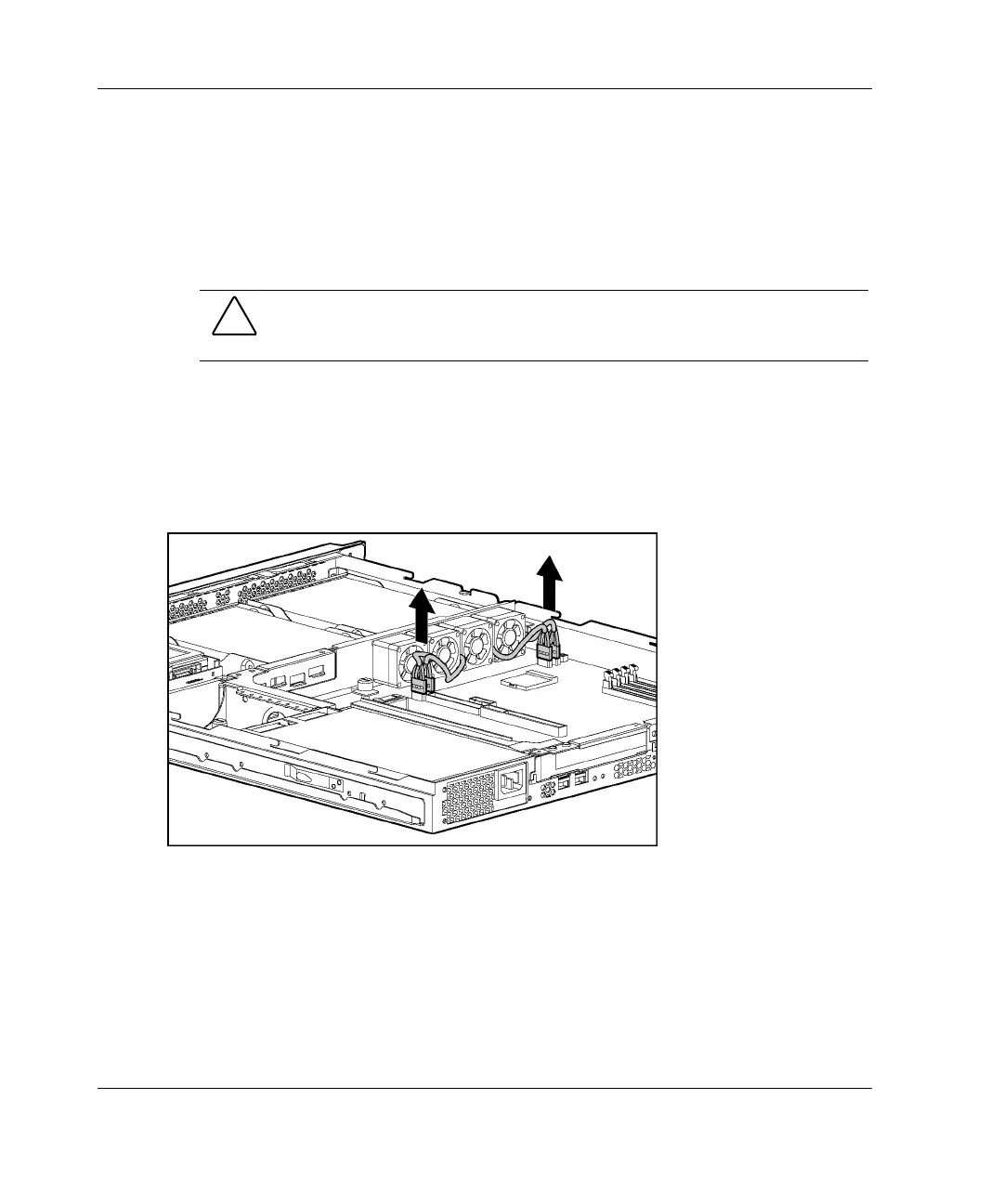

Figure 3-15: Disconnecting the center wall fan cables
3-20 HP ProLiant DL320 Generation 2 Server Setup and Installation Guide
