Installing Hardware Options
b. Loosen the thumbscrew (1).
c. Push in the tab next to the center wall fans to unlock the center wall from the
chassis (2).
d. Raise the locking end of the center wall from the chassis (3).

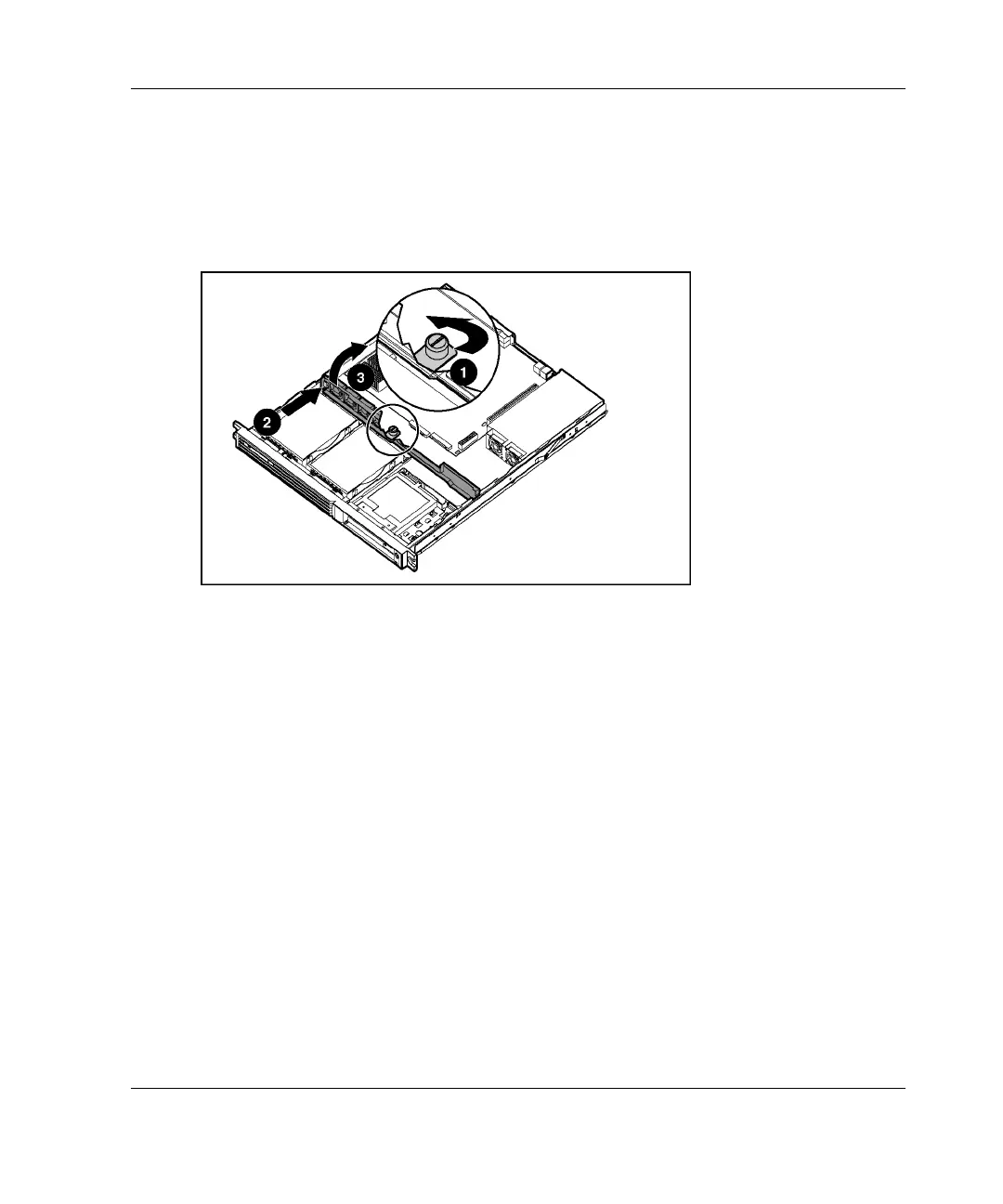

Figure 3-16: Unlocking the center wall
