Installing Hardware Options
e. Clear the center wall alignment tab from the alignment slot.

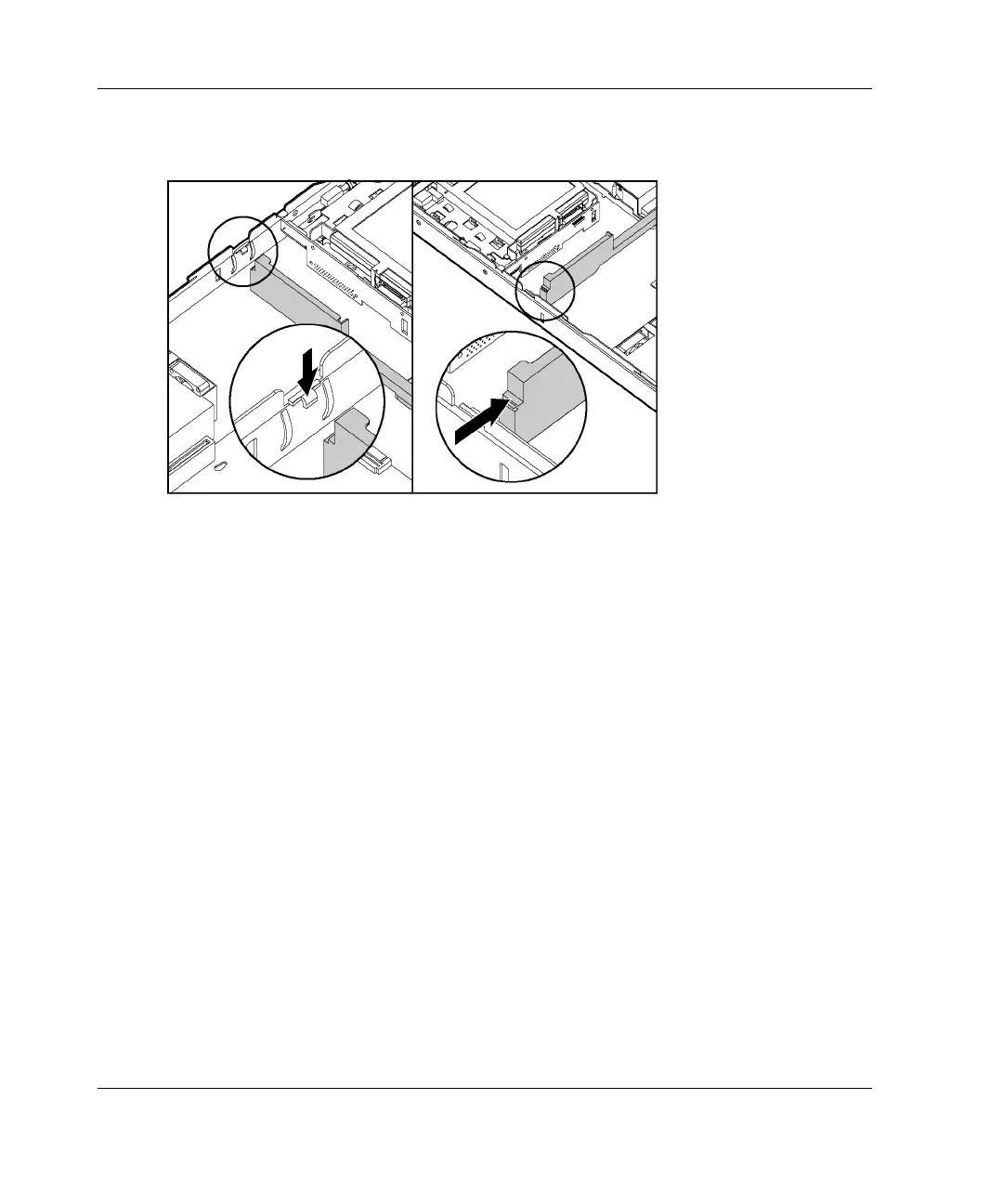

Figure 3-17: Clearing the center wall alignment tab from
the alignment slot
5. Identify the tray into which the ATA hard drive is to be installed.
3-22 HP ProLiant DL320 Generation 2 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Anna Roberts File Name: d-ch3 Installing Hardware Options.doc
Codename: MoonStar Part Number: 293166-002 Last Saved On: 1/31/03 11:16 AM
