Baffle
The fan baffle sits between the fan sink and the rear of the computer.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 66).
2. Remove the access panel (
Access panel on page 67).
3. Rotate the drive cage to its upright position.
4. Remove the cables from the hook on the baffle.

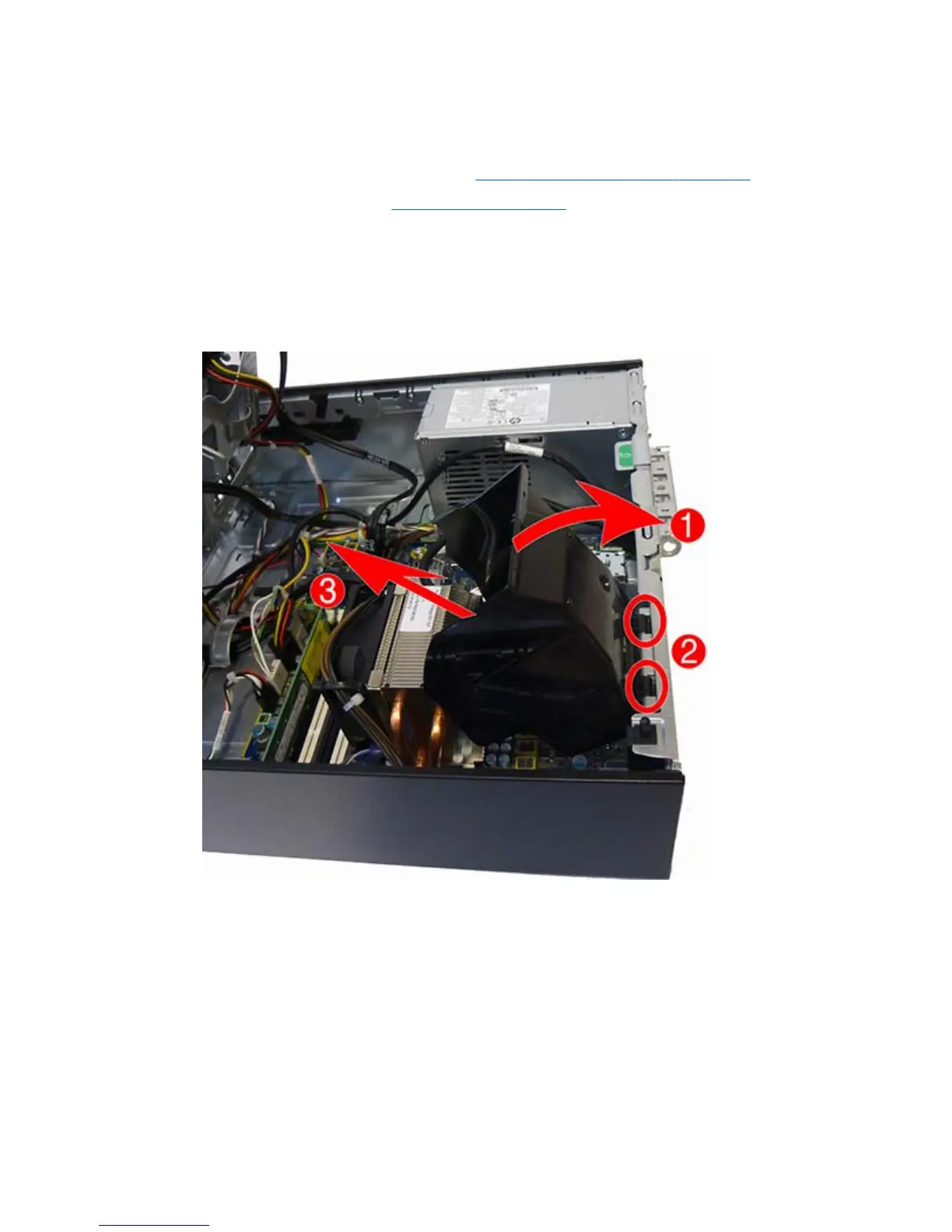

5. Rotate the baffle upward (1), pull the baffle away from the rear of the chassis to disengage the
clips that secure the baffle to the rear of the chassis (2), and the remove the baffle from the
chassis (3).
To install the baffle, reverse the removal procedure.
Baffle 93
