Access panel

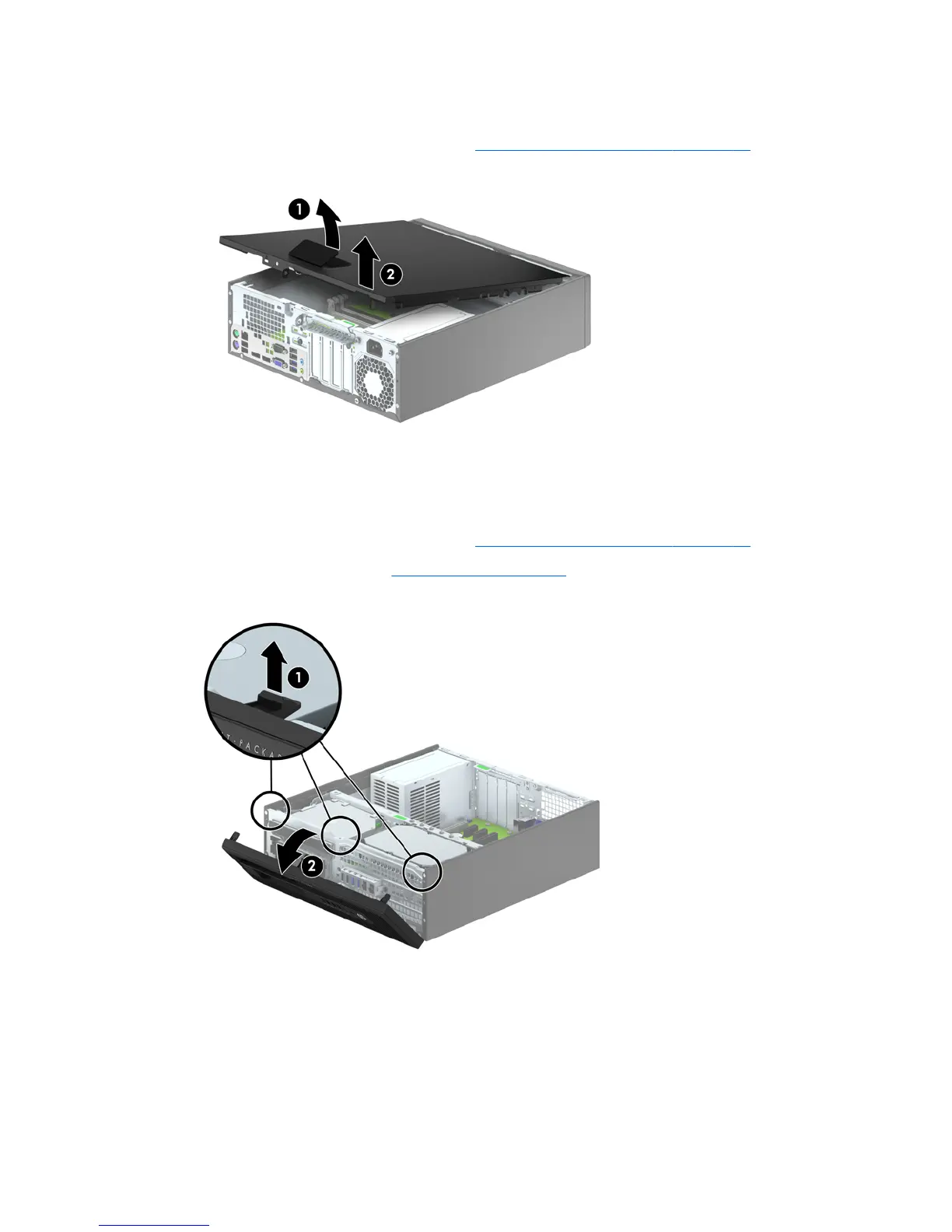

1. Prepare the computer for disassembly (Preparation for disassembly on page 66).
2. Lift up on the access panel handle (1) then lift the access panel off the computer (2).
To install the access panel, reverse the removal procedure.
Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 66).
2. Remove the access panel (
Access panel on page 67).
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
To install the front bezel, reverse the removal procedure.
Access panel 67
