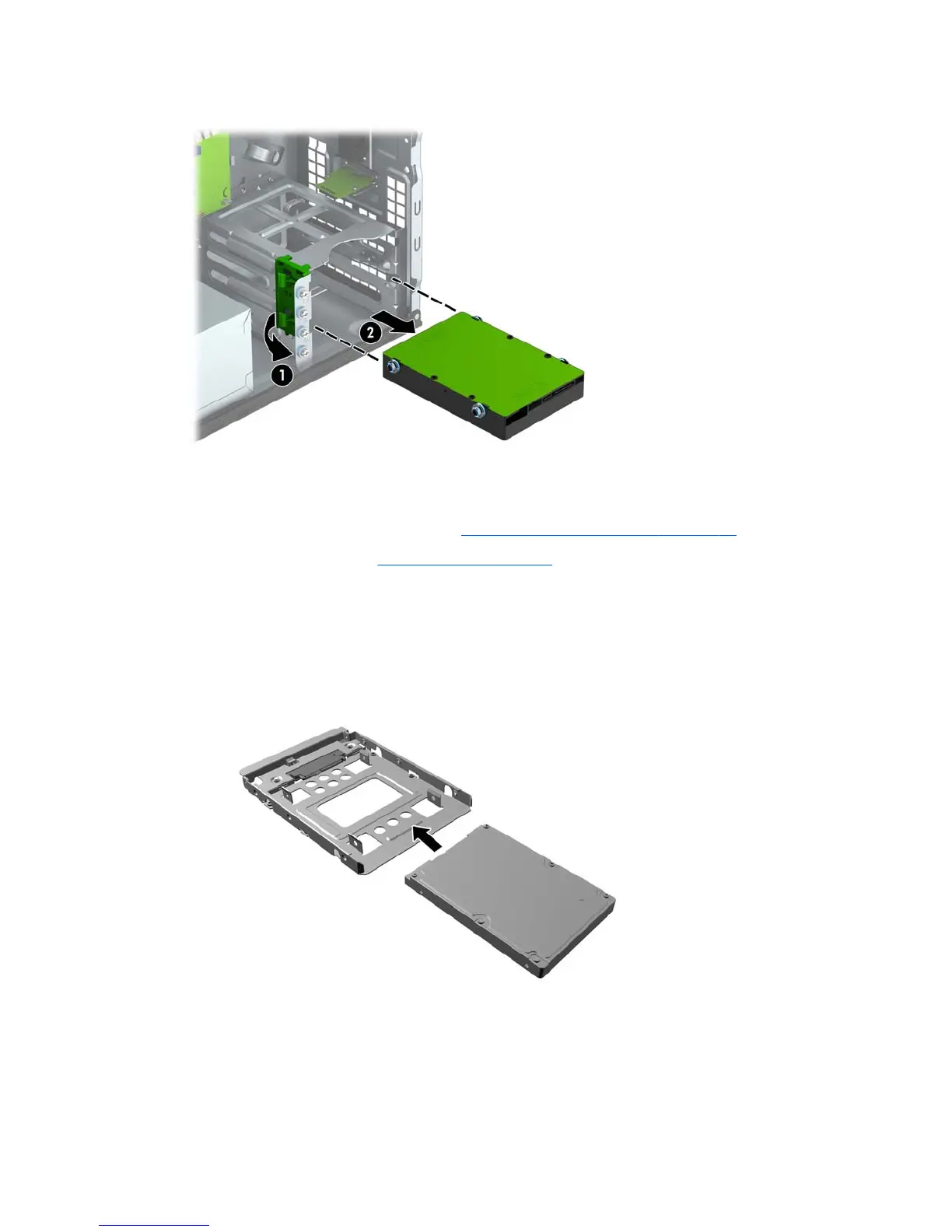

4. Pull the green latch next to the drive outward (1) and slide the drive out of the bay (2).
Installing a hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the access panel (
Access panel on page 33).
3. You can install a 3.5-inch hard drive or a 2.5-inch hard drive with a 3.5-inch adapter bracket
similar to the example shown below.
ā
Slide the 2.5-inch drive into the bay adapter bracket, ensuring the connector on the drive is
fully inserted into the connector on the adapter bracket.
48 Chapter 5 Removal and replacement procedures ā Microtower (MT) chassis
