Hood sensor
The hood sensor is attached in a slot in the rear of the chassis.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 66).
2. Remove the access panel (
Access panel on page 67).
3. Rotate the drive cage to its upright position.
4. Rotate the baffle to its upright position.

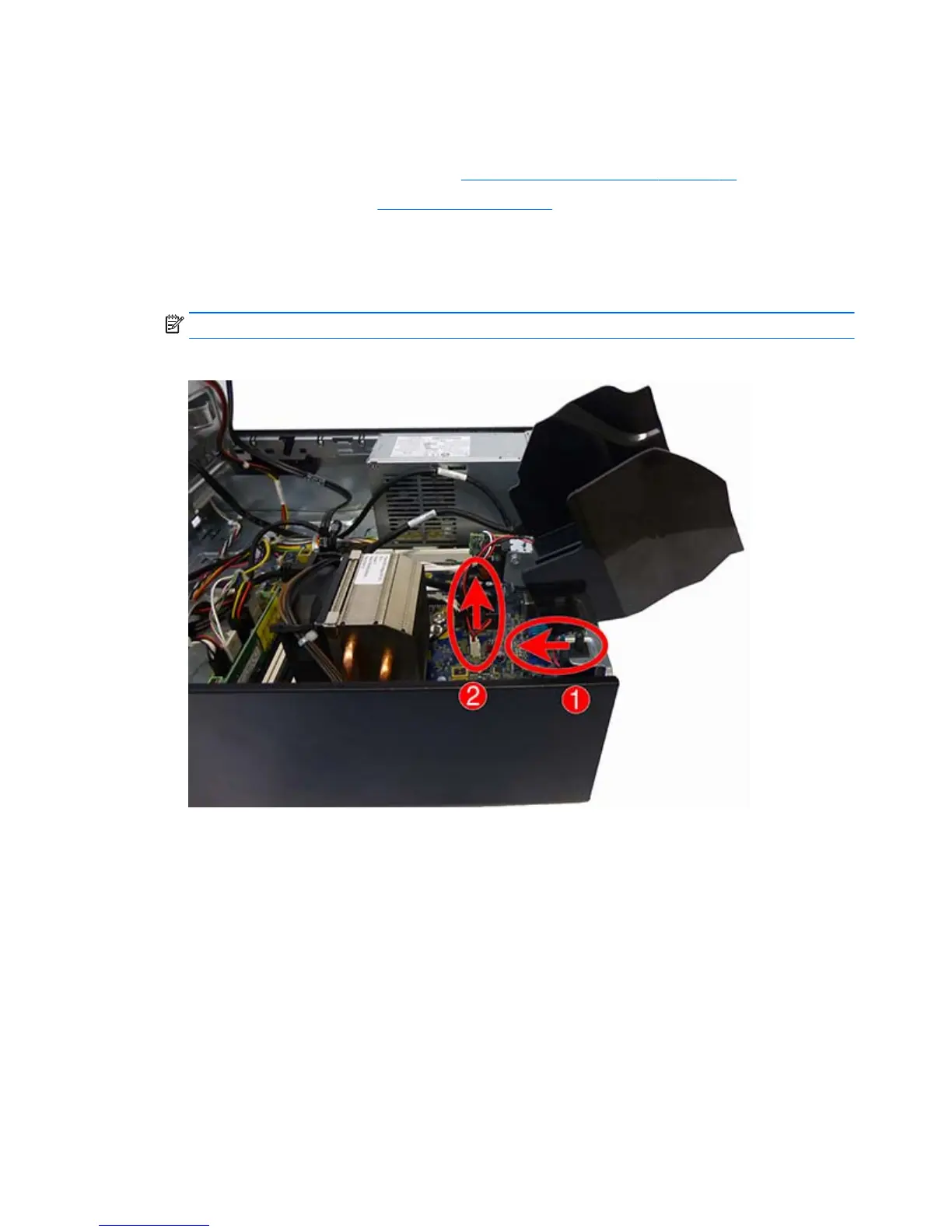

5. Slide the hood sensor straight out of the notch in the chassis (1).
NOTE: A flat blade screwdriver can be used to push the hood sensor out of the slot.
6. Unplug the sensor cable from the system board connector labeled HSENSE (2).
To install the hood sensor, reverse the removal procedure.
