HP EliteDesk 705 G1 Microtower

Front bezel
1. Prepare the computer for disassembly (Preparation for disassembly on page 32)
2. Remove the access panel (
Access panel on page 33)

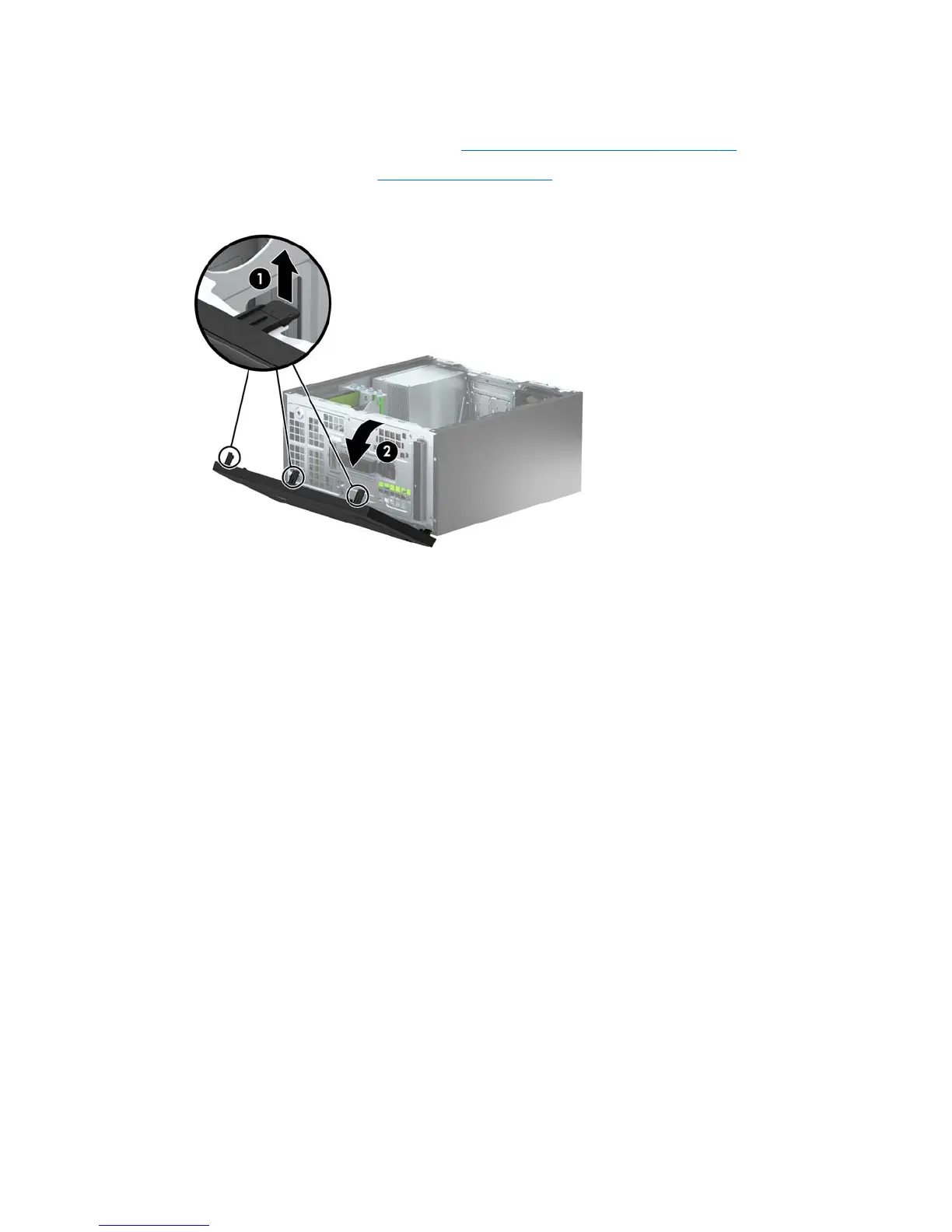

3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
34 Chapter 5 Removal and replacement procedures – Microtower (MT) chassis
