Front I/O assembly
The front I/O assembly is attached to the front of the chassis. Push the assembly into the chassis to
remove.
1. Prepare the computer for disassembly (
Preparation for disassembly on page 66).
2. Remove the access panel (
Access panel on page 67).
3. Remove the front bezel (
Front bezel on page 67).
4. Rotate the drive cage to its upright position.

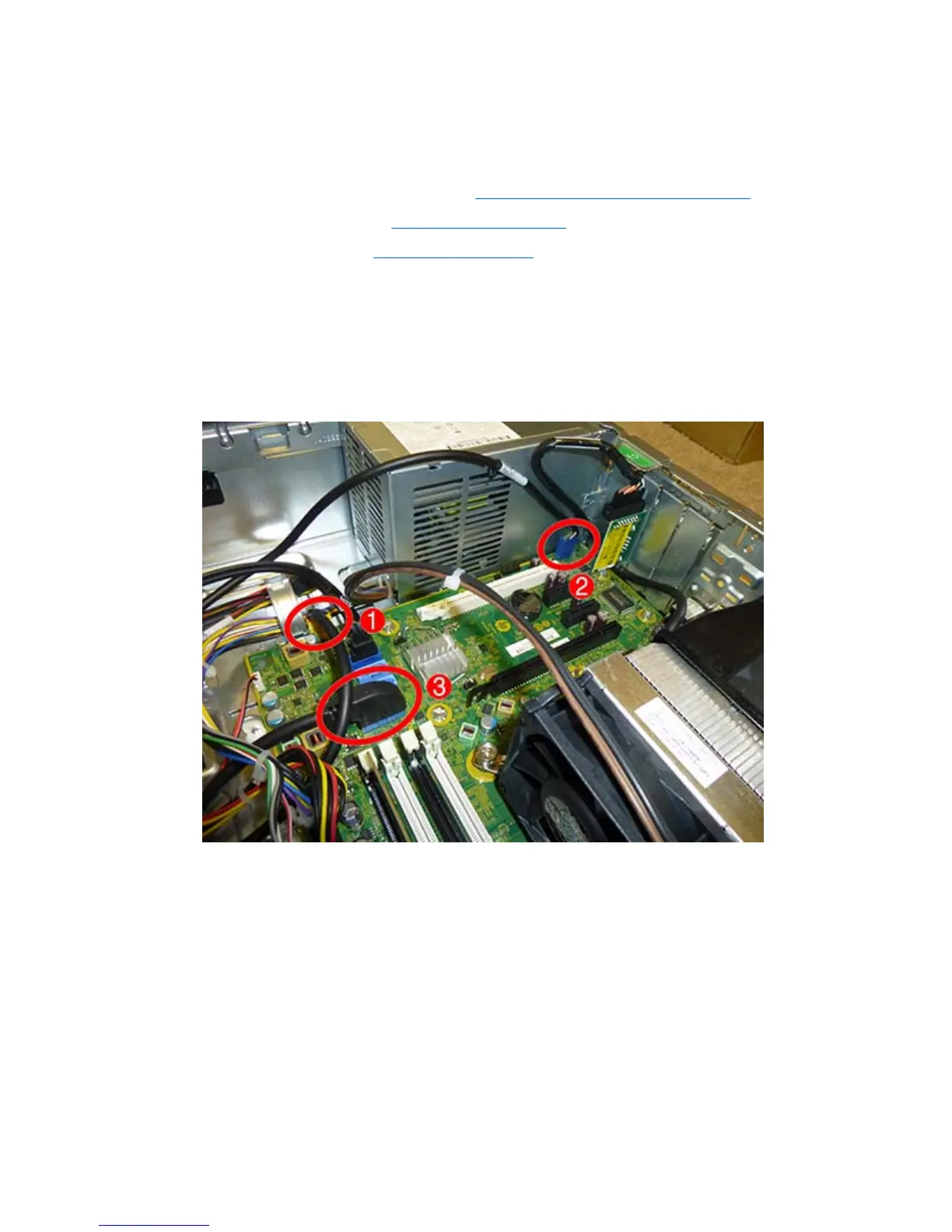

5. Disconnect the cables from the system board as follows:
●
(1) Yellow connector labeled FRONT_USB
●
(2) Blue connector labeled FRONT AUD
●
(3) Blue connector labeled FRONT_USB3.0
Front I/O assembly 95
