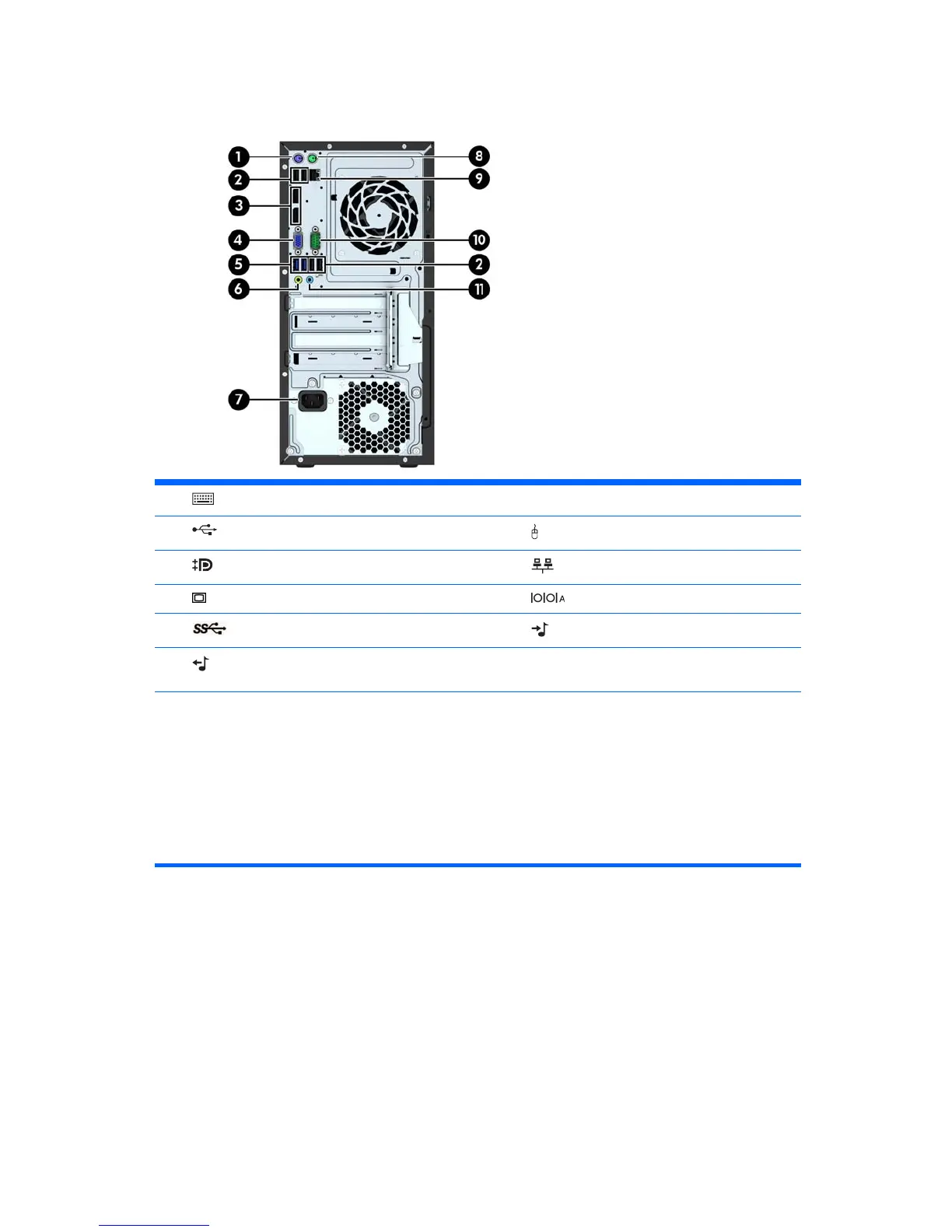

Rear panel components, microtower
1 PS/2 Keyboard Connector (purple) 7 Power Cord Connector
2
USB 2.0 Ports (black) 8 PS/2 Mouse Connector (green)
3
DisplayPort Monitor Connectors 9 RJ-45 Network Connector
4
VGA Monitor Connector 10 Serial Connector
5
USB 3.0 Ports (blue) 11 Line-In Audio Connector (blue)
6
Line-Out Connector for powered audio
devices (green)
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-
clicking the Audio Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and/
or the integrated graphics on the system board may be used. The specific graphics card installed and software
configuration will determine the behavior.
The system board graphics can be disabled by changing settings in Computer Setup.
4 Chapter 1 Product Features
