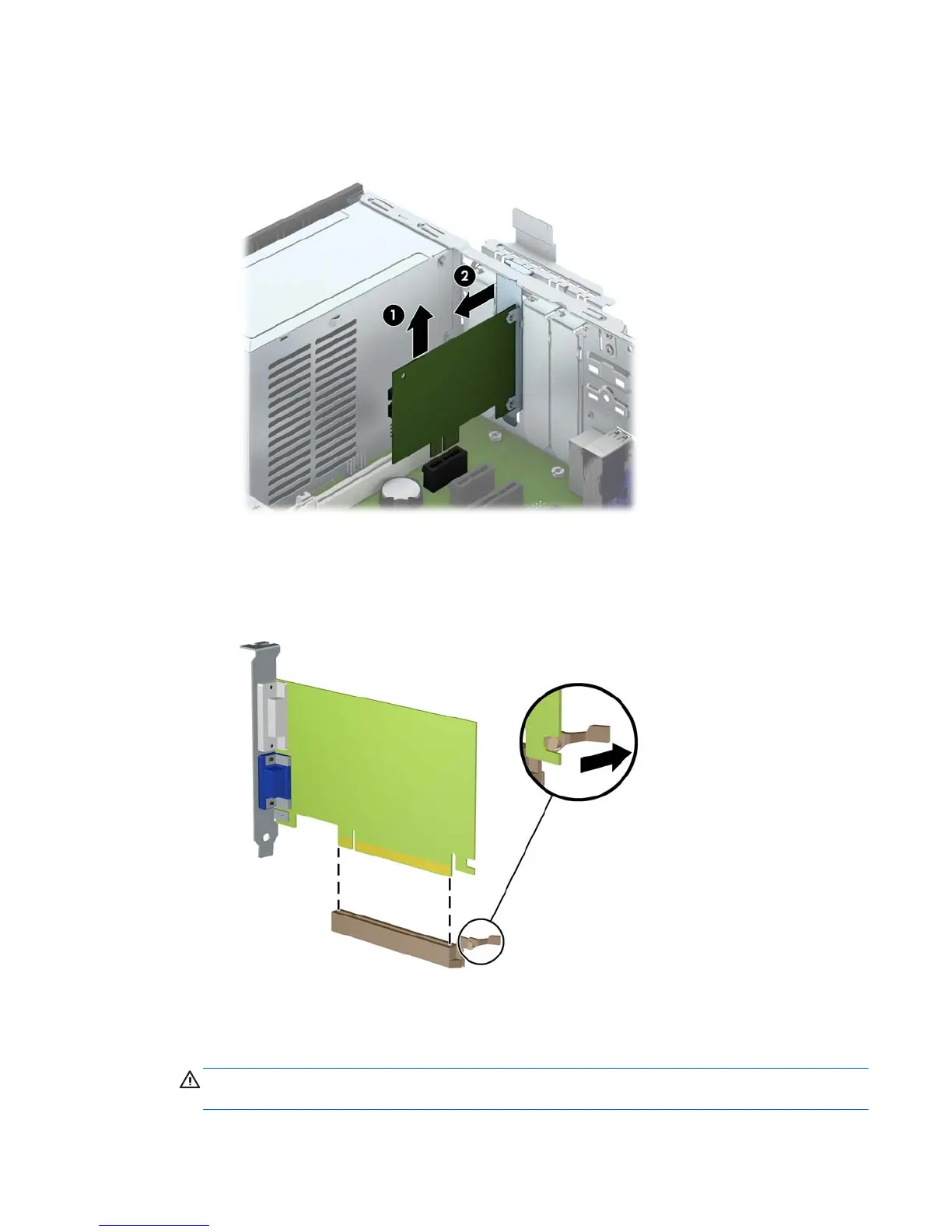

b. If you are removing a PCI Express x1 card, hold the card at each end, and carefully rock it
back and forth until the connectors pull free from the socket. Pull the expansion card
straight up from the socket (1) then away from the inside of the chassis to release it from
the chassis frame (2). Be sure not to scrape the card against the other components.
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Pull the expansion card straight up from the socket
then away from the inside of the chassis to release it from the chassis frame. Be sure not to
scrape the card against the other components.
6. Store the removed card in anti-static packaging.
7. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
Expansion card 75
