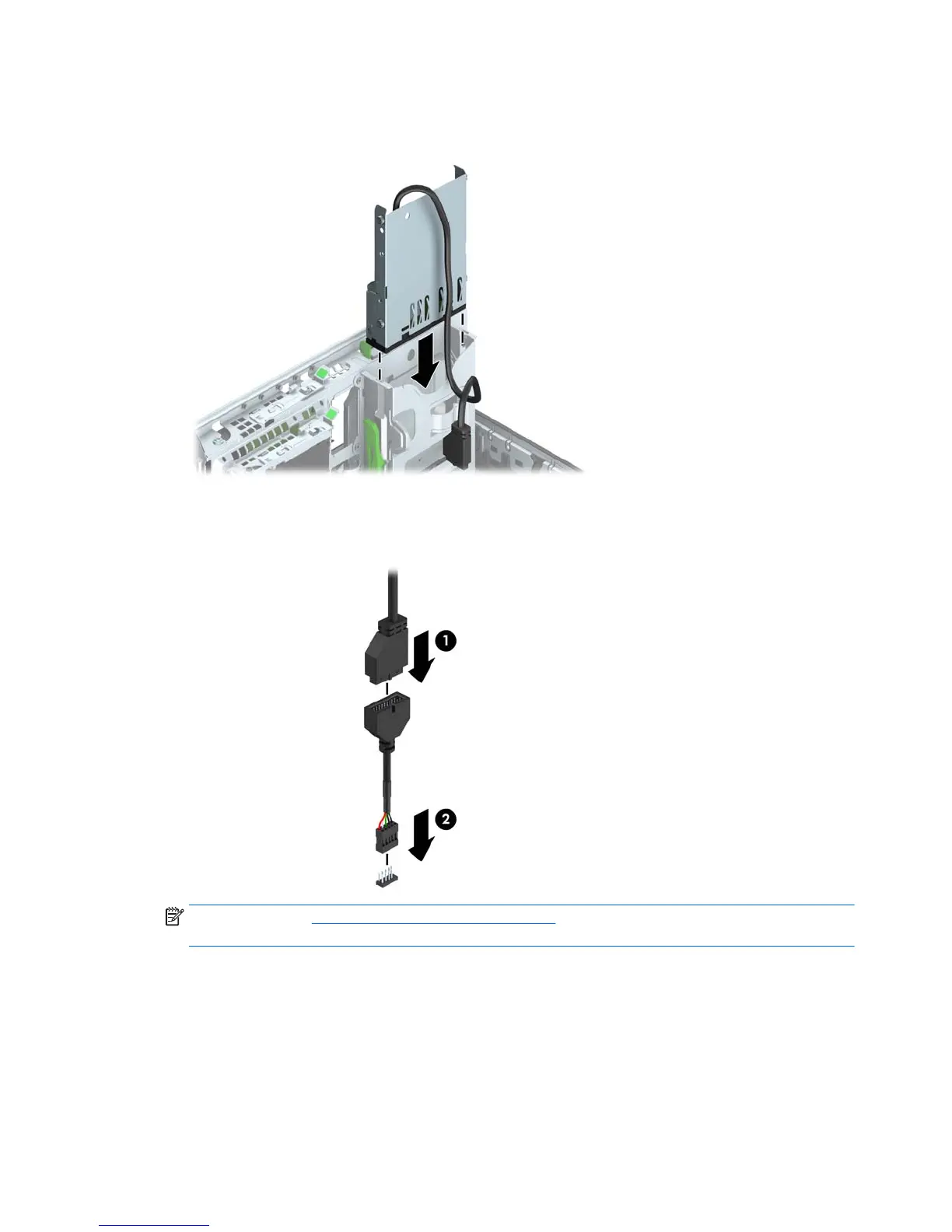

6. Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until
the drive snaps into place.
7. If installing a USB 3.0 media card reader, you must use the USB 3.0 to USB 2.0 adapter (1) and
connect the adapter cable from the media card reader to the USB 2.0 connector on the system
board labeled MEDIA (2).
NOTE: Refer to System board callouts on page 110 for an illustration of the system board
drive connectors.
82 Chapter 6 Removal and replacement procedures – small form factor (SFF) chassis
