Connecting an AC adapter to power

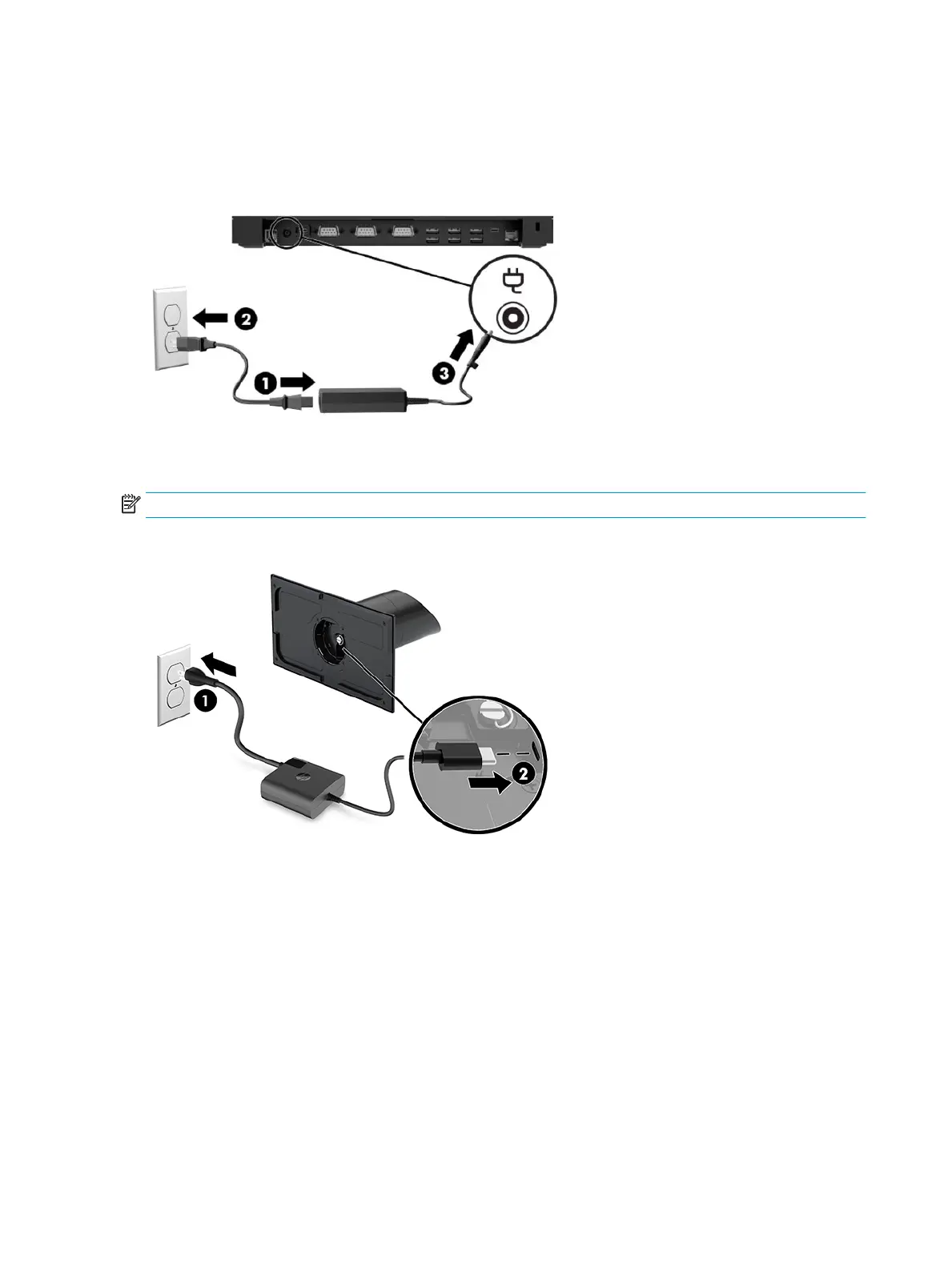

To connect an AC adapter to the I/O connectivity base, connect one end of the power cord to the AC adapter (1)
and the other end to a grounded AC outlet (2), and then connect the AC adapter to the power connector on the
I/O connectivity base (3).
To connect an AC adapter to the mobility system when it is not connected to an I/O connectivity base, connect
the AC adapter to a grounded AC outlet (1), and then connect the power adapter’s USB Type-C connector to
the USB Type-C power port on the underside of the dock’s column (2).
NOTE: The image below is shown with a stability base.
