Solid-state drive (M.2)
For a list of available solid-state drives, see Illustrated parts catalog on page 14.
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 37).
2. Remove the hand strap (see Hand strap on page 38).
3. Remove the rear cover (see Backplate on page 39).

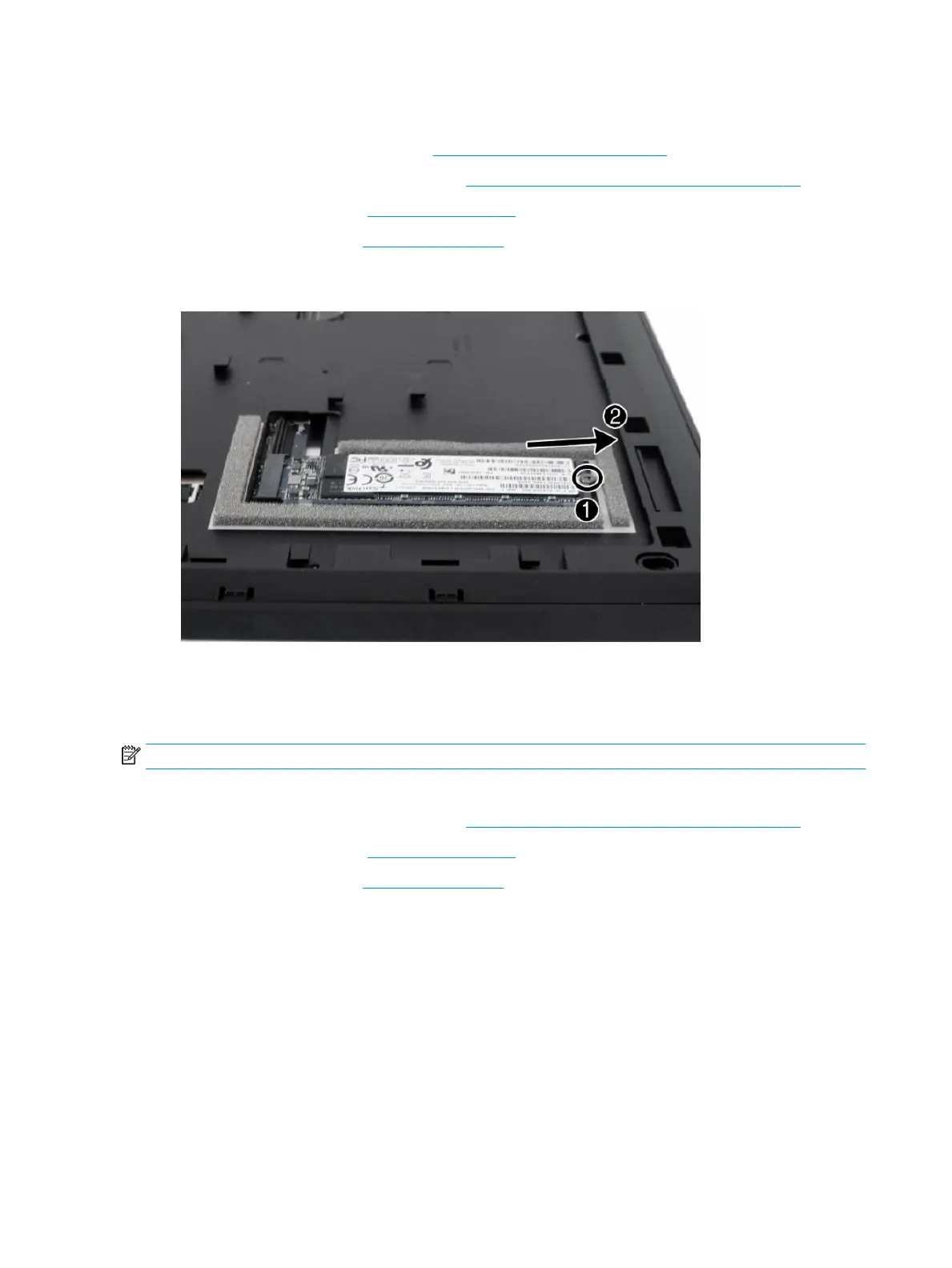

4. To remove the solid-state drive, remove the screw that secures the drive to the system board (1), and
then slide the drive out of the system board connector (2).
To install a solid-state drive, reverse the removal procedures.
Display
NOTE: The display panel is spared with all required parts.
To remove the display:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 37).
2. Remove the hand strap (see Hand strap on page 38).
3. Remove the rear cover (see Backplate on page 39).
40 Chapter 6 Removal and replacement procedures for the mobility head unit
