HP Engage Go Mobile System Service Manual

Connecting a standalone I/O connectivity base to the HP Engage
Go Convertible System
1. Turn o the mobility system properly through the operating system, and turn o any external devices.
2. Disconnect the power cords from the mobility system and I/O connectivity base.
IMPORTANT: Regardless of the power-on state, voltage is always present on the system board as long
as the system is plugged into an active AC outlet. You must disconnect the power cord and wait
approximately 30 seconds for the power to drain to avoid damage to the internal components.

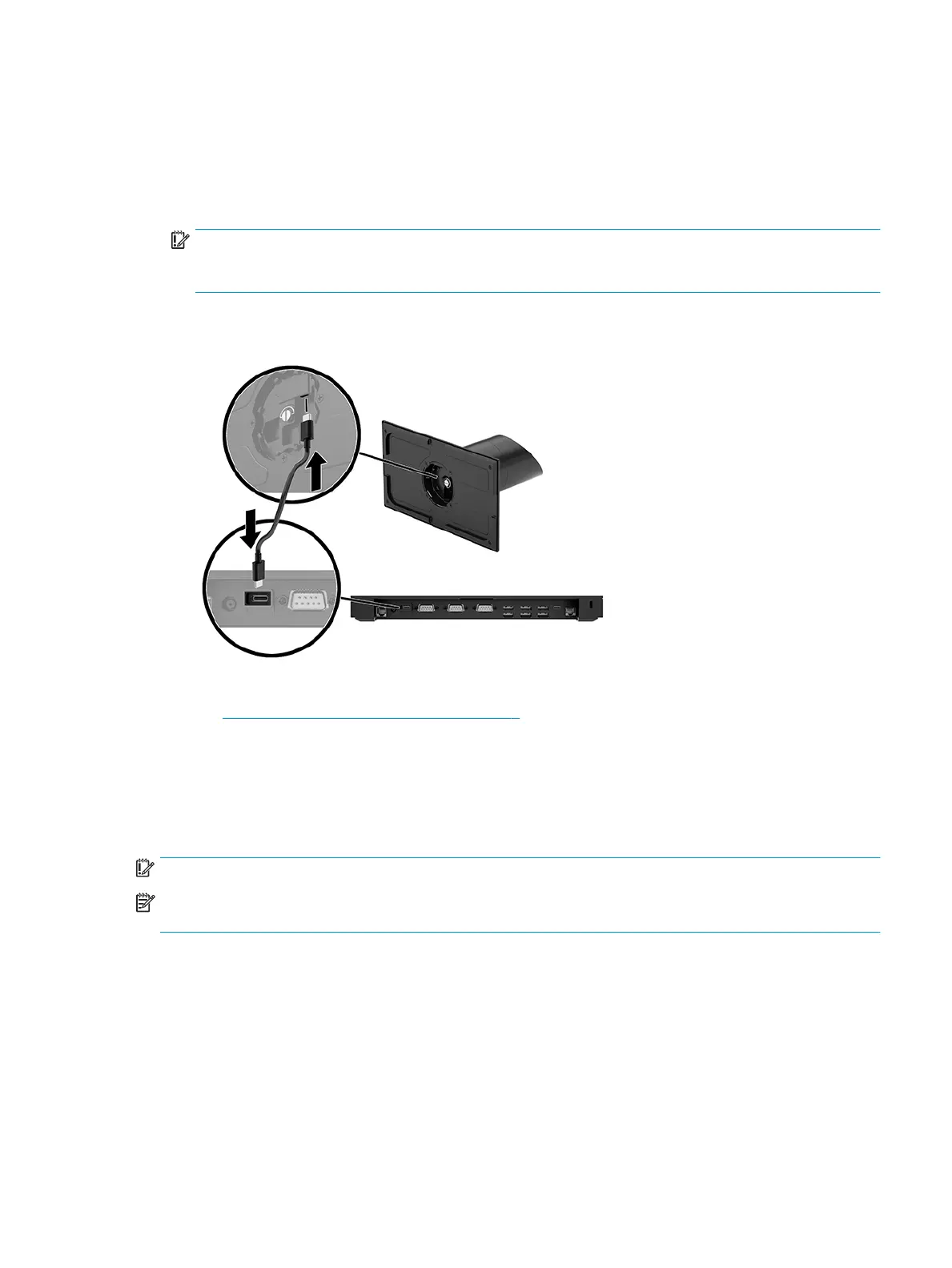

3. Connect the USB Type-C power cable to the USB Type-C port on the underside of the dock’s column and
to the USB Type-C power port on the I/O connectivity base.
4. Connect the I/O connectivity base’s power supply to the I/O connectivity base and a grounded AC outlet.
See Connecting an AC adapter to power on page 6.
Conguring the I/O connectivity base’s powered serial ports
The serial ports can be congured as standard (non-powered) serial ports or powered serial ports. Some
devices use a powered serial port. If the serial port is congured as a powered port, devices that support a
powered serial interface do not require an external power source.
IMPORTANT: The system must be powered o before connecting or disconnecting serial port devices.
NOTE: The I/O connectivity base ships with all serial ports congured in standard non-powered serial mode
(0 volts) by default.
There are three voltage settings for each serial port.
●
0 volts
●
5 volts
●
12 volts
To change the voltage settings for a powered serial port:
Connecting a standalone I/O connectivity base to the HP Engage Go Convertible System 29

HP Engage Go Mobile System Specifications

General

Display	1920 x 1280
Memory	8 GB
Storage	128 GB
Operating System	Windows 10 IoT Enterprise
Connectivity	Wi-Fi, Bluetooth
Ports	headphone/microphone combo
Security	fingerprint reader
