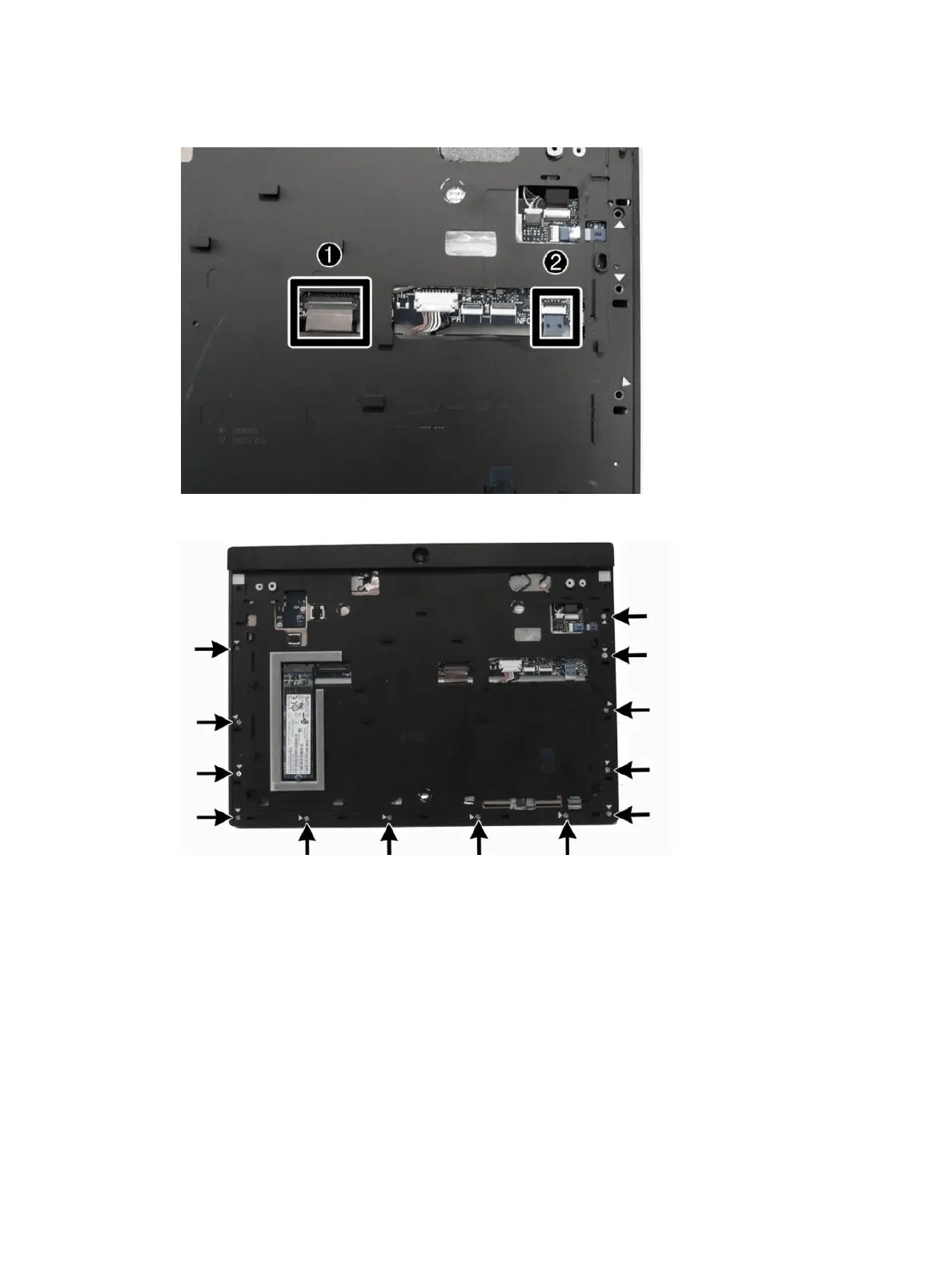

6. From the back of the computer, disconnect the display cable from the ZIF connector (1) and the touch
cable from the reverse ZIF connector (2) on the system board.
7. Remove the 13 screws that secure the display to the chassis.
8. Rotate the top of the display panel away from the computer chassis (1).
42 Chapter 6 Removal and replacement procedures for the mobility head unit
