Chapter 2 2-15
HP ESA Status Registers
Using the Analyzer Status Registers
To Status Byte Register Bit #7
Operation
Condition Register
Status
Operation
Event Register
Status
Operation
Event
Enable Register
Status
Operation
Negative
Transition Filter
Status
Operation
Positive
Transition Filter
Status
+
012345678910111214 1315
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
012
3
45678910111214 1315
012345678910111214 1315
012345678910111214 1315
012
3
45678910111214 1315
ck758a
CALibrating
Unused
Unused
Unused
Unused
Unused
SWEeping
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Always Zero (0)
Waiting for TRIGger
Operation Status Register

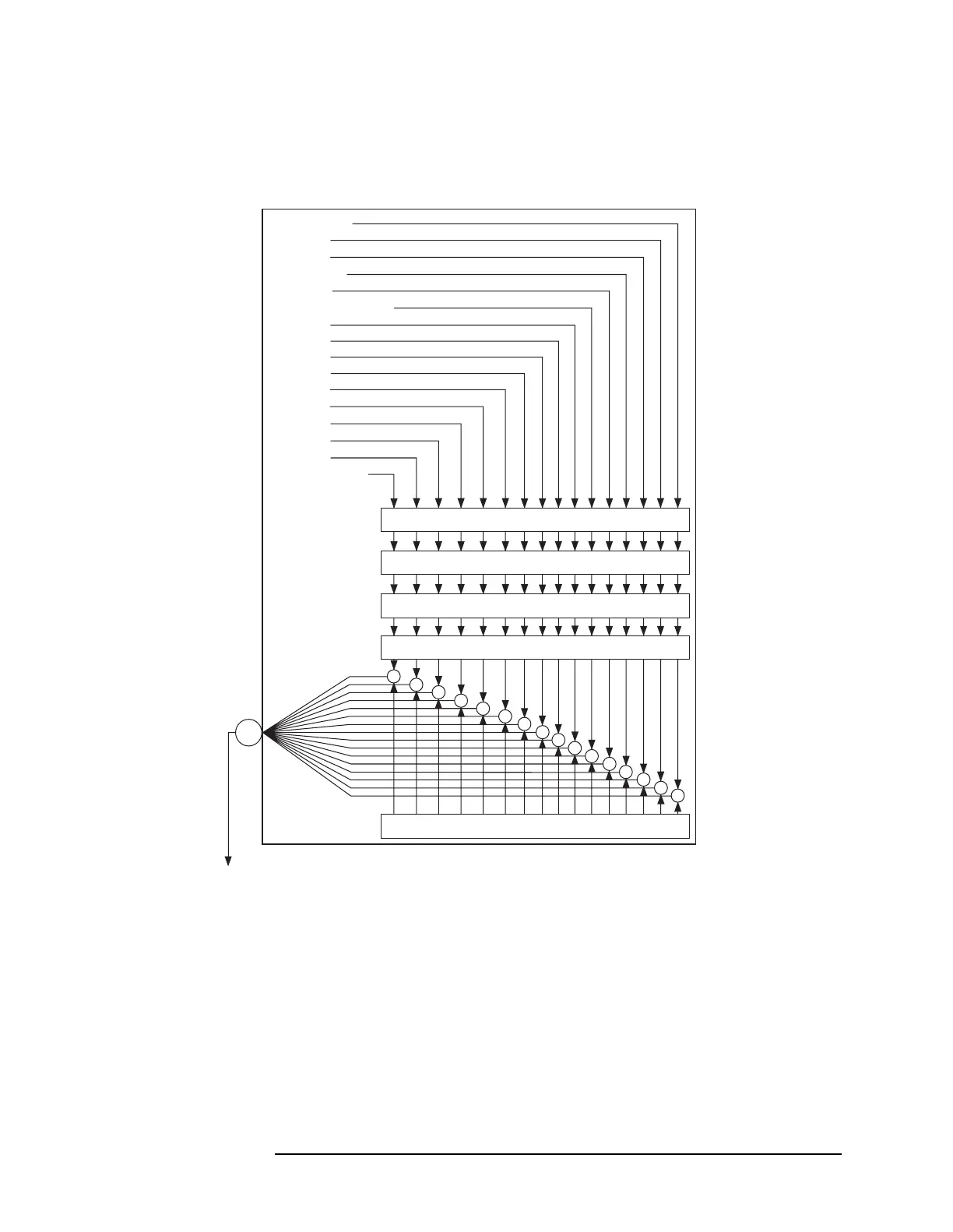

Figure 2-2. Status Operation Register
The Operation Status Register is used to determine the specific event
that sets bit 7 in the Status Byte Register. The Operation Status
Register consists of the following registers:
Operation Status
condition register
Operation Status positive transition filter
Operation Status negative transition filter
Operation Status event register
Operation Status event enable register
The Operation Status Condition Register contains the following bits:
