Chapter 2 2-31
HP ESA Status Registers
Using the Analyzer Status Registers
Questionable Status Integrity Register

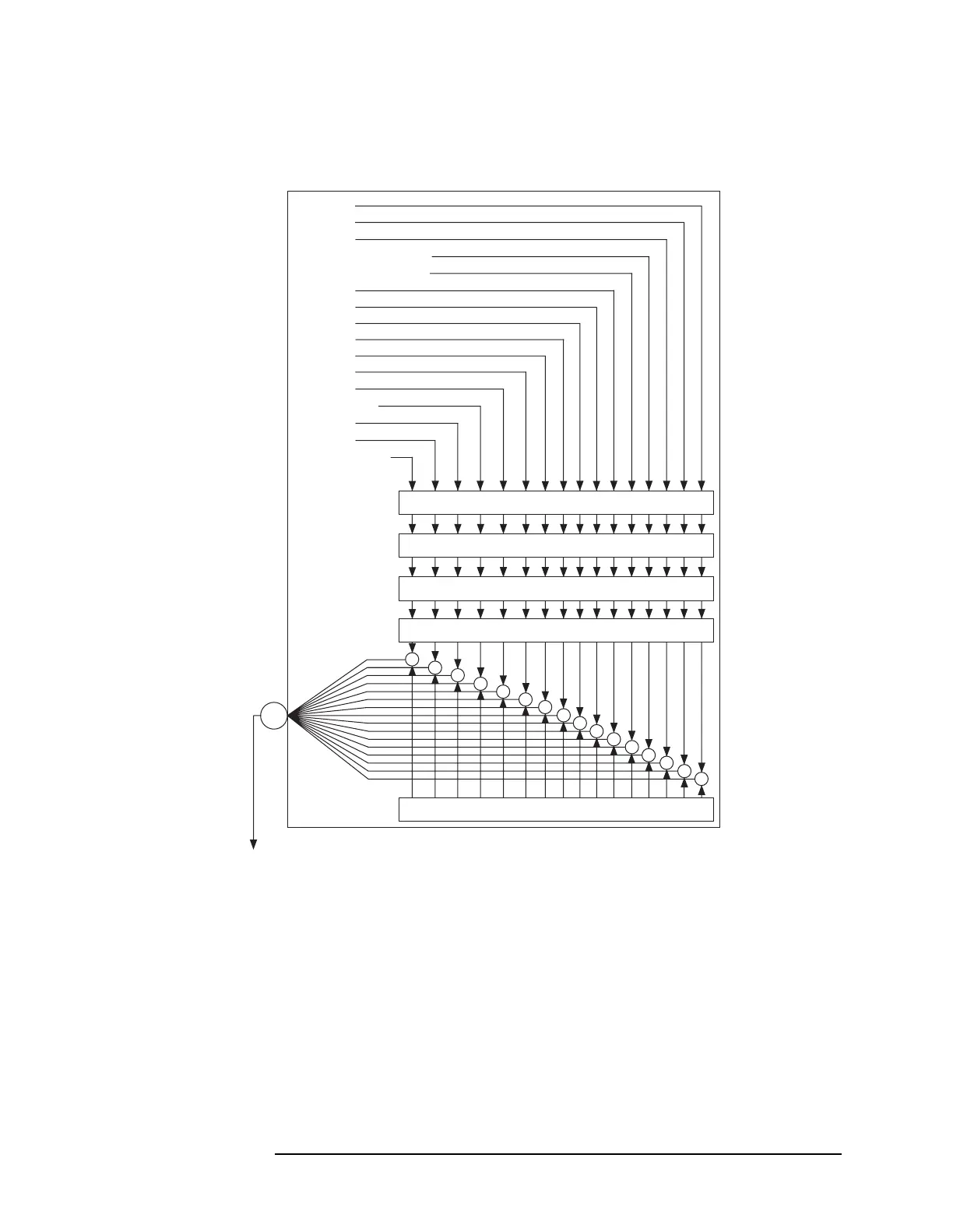

Figure 2-17. Questionable Status Integrity Register
The Questionable Status Integrity Register is used to determine the
specific event that sets bit 9 in the Questionable Status Register. The
Questionable Status Integrity Register consists of the following
registers:
Questionable Status
Integrity condition register
Questionable Status Integrity positive transition filter
Questionable Status Integrity negative transition filter
Questionable Status Integrity event register
Questionable Status Integrity event enable register
The Questionable Status Integrity Condition Register contains the
following bits:
To Questionable Register Bit #9Status
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Measurement Uncal
Invalid Data
Status
INTegrity
QUEStionable
Condition Register
Status QUEStionable
INTegrity
Event Register
Status QUEStionable
CALibration
Event
Enable Register
Status
INTegrity
QUEStionable
Negative
Transition Filter
Status
INTegrity
QUEStionable
Positive
Transition Filter
Always Zero (0)
IF/ADC Over Range
+
012345678910111214 1315
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
012
3
45678910111214 1315
012
3
45678910111214 1315
012345678910111214 1315
012
3
45678910111214 1315
