HP ESA Status Registers
Using the Analyzer Status Registers
command :STATus:QUEStionable:CALibration:NTRansition <num>
(negative transition) or
:STATus:QUEStionable:CALibration:PTRansition <num> (positive
transition) where <num> is the sum of the decimal values of the bits you
want to enable.
The Questionable Status Integrity Event Register latches transition
events from the condition register as specified by the transition filters.
Event registers are destructive read-only. Reading data from an event
register will clear the content of that register. To query the event
register, send the command
:STATus:QUEStionable:CALibration[:EVENt]?
Figure 2-19
The Questionable Status Integrity event enable register lets you choose
which bits will set the integrity summary bit (bit 9) of the Questionable
Status Register to 1. Send the command
:STATus:QUEStionable:INTegrity:ENABle <num> where <num> is the
sum of the decimal values of the bits you want to enable. For example,
to enable bit 12 and bit 3 so that whenever either of those bits is set to
1, the Questionable Status Integrity summary bit of the Questionable
Status condition register will be set to 1, send the command
:STATus:QUEStionable:INTegrity:ENABle 5104 (4096 + 8). The
command :STATus:QUEStionable:INTegrity:ENABle? returns the
decimal value of the sum of the bits previously enabled with the
:STATus:QUEStionable:INTegrity:ENABle <num> command.
Bit Number
7
89101112131415
6
5
432
1
0
2048
512
32
16
4
8
1
16384
8192
4096
1024
128
256
64
Decimal Value
32768
2
ck756a

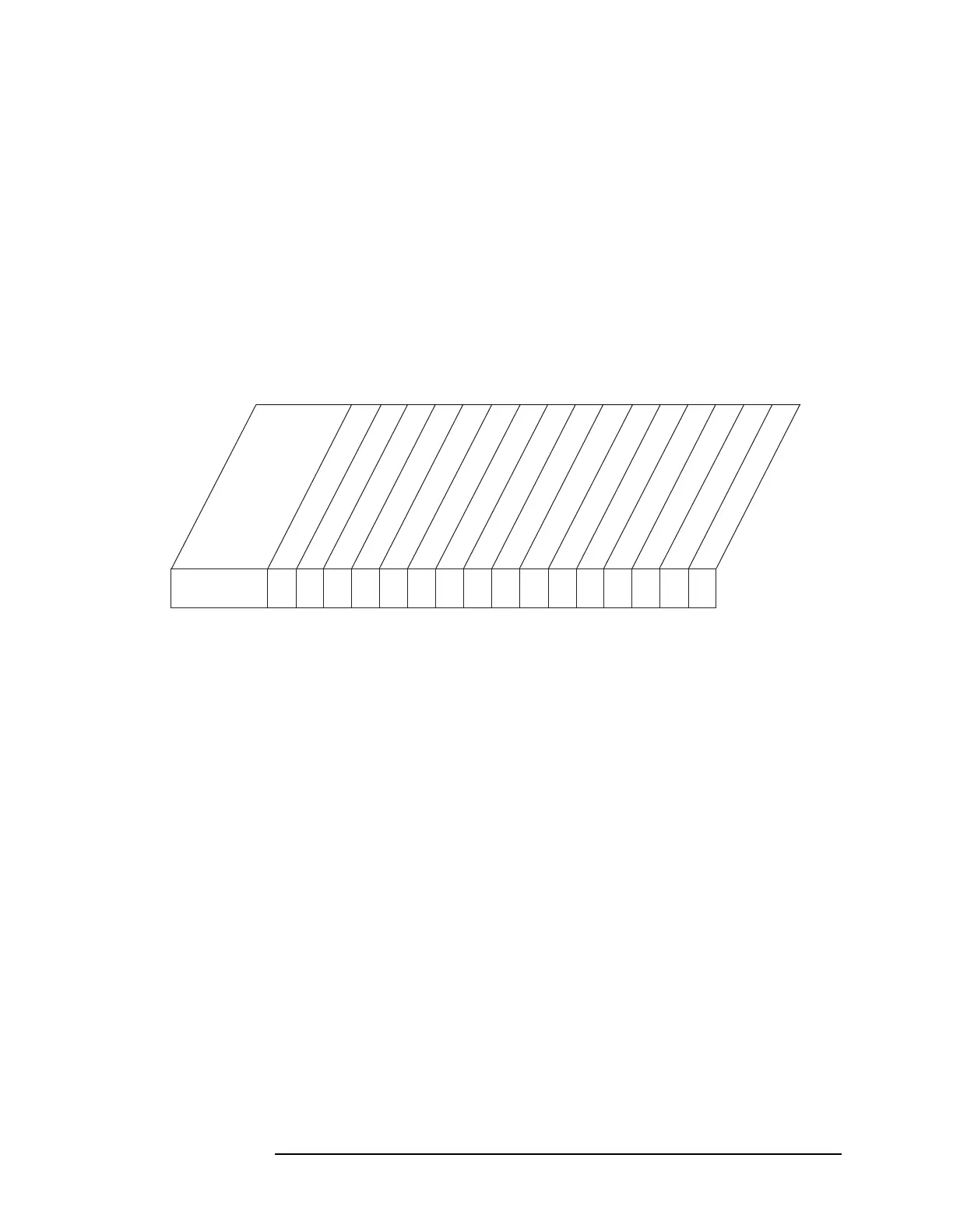

Status Questionable Integrity Event Enable Register
STATus:QUEStionable:INTegrity:ENABle <num>
STATus:QUEStionable:INTegrity:ENABle?
