a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the chassis.
3. If installed,
disconnect the tube set.
4. Disconnect all peripheral cables from the servers and chassis.
5. Do one of the following:
•
Extend the chassis from the rack.
•
Remove the chassis from the rack.
6.
Remove the access panel.
7. Remove all fans.
8.

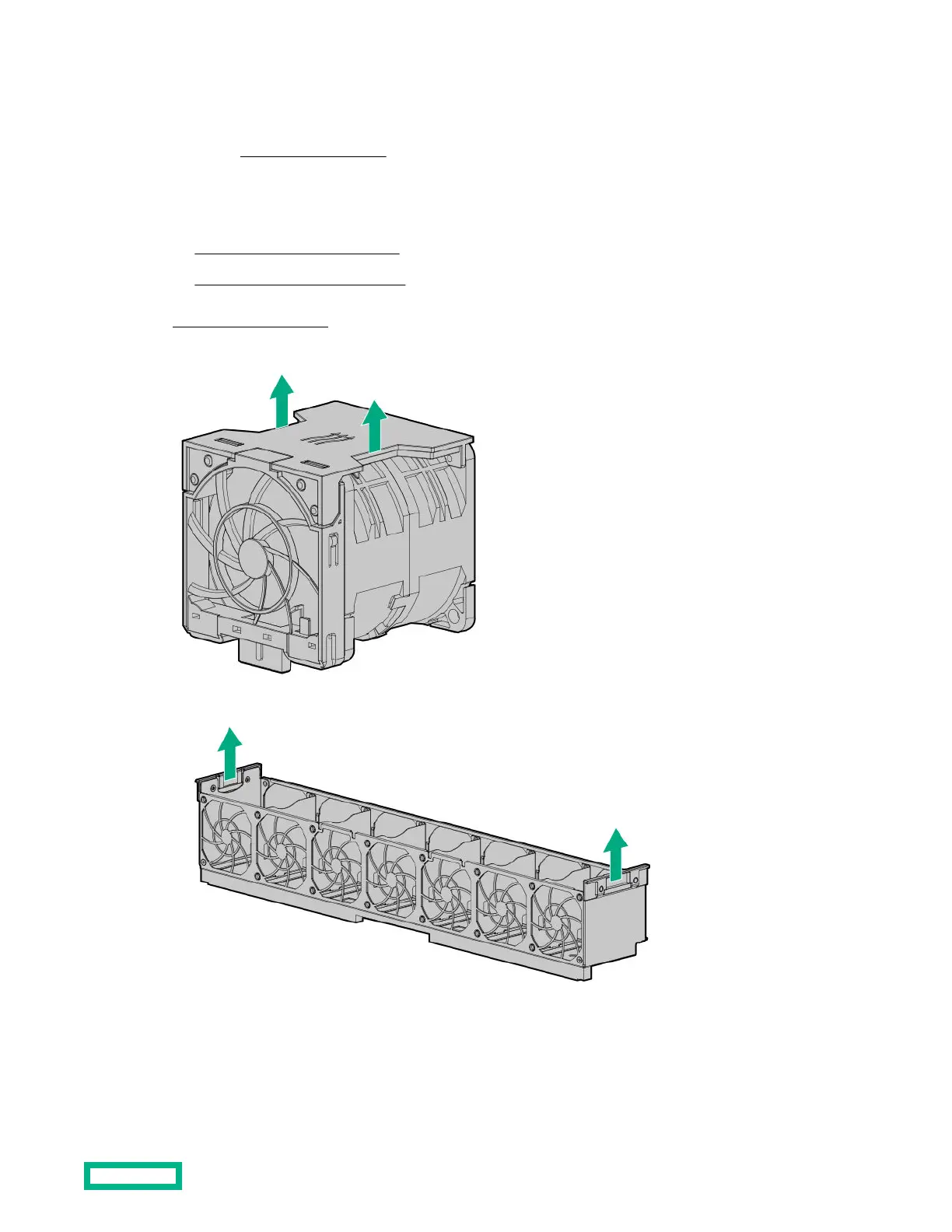

Grip both sides of the fan cage, and then lift the cage from the chassis.
9. Remove the bezel ear screws (callout 1), and then detach the ear from the chassis (callout 2).
• Left bezel ear
Removal and replacement procedures
47
