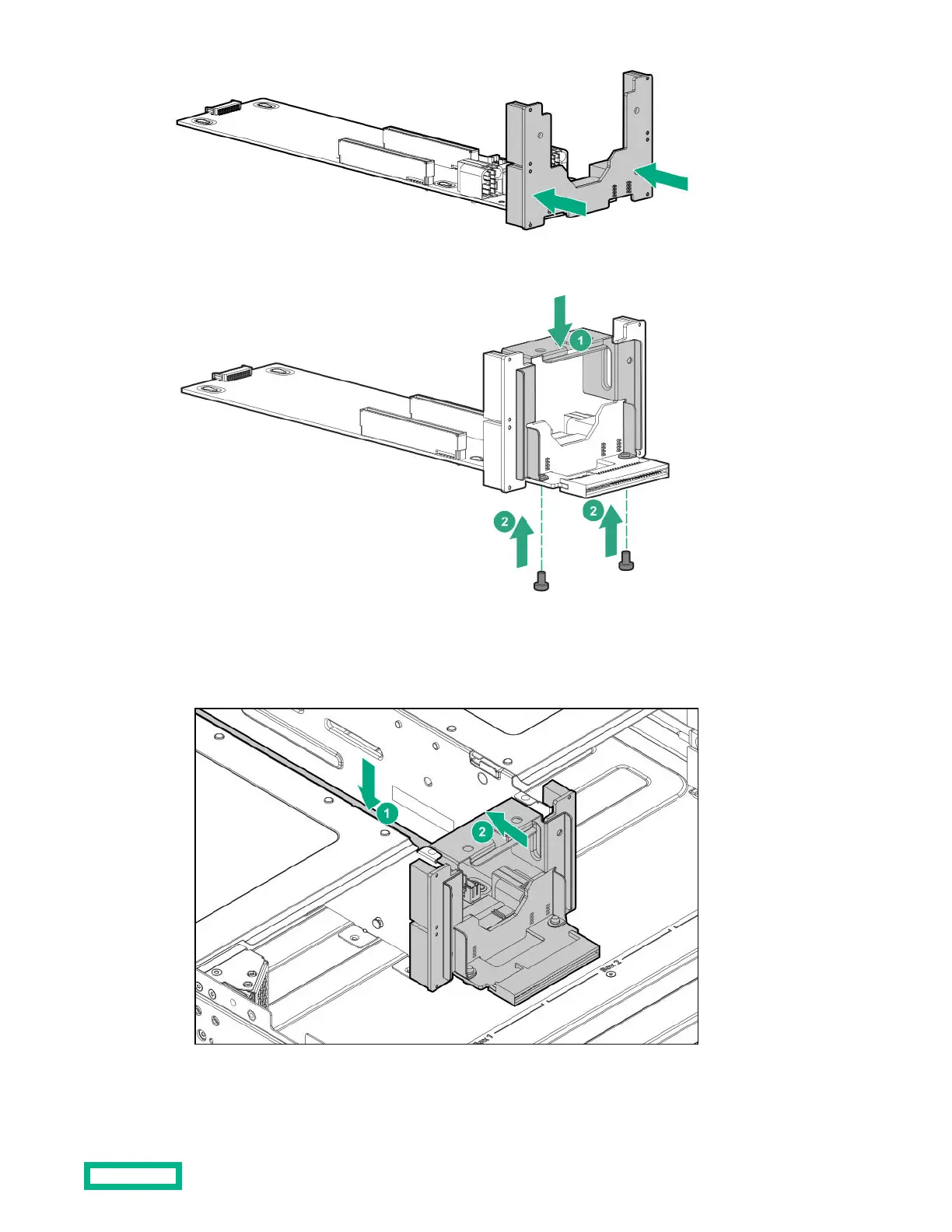

2. Install the power backplane bracket (callout 1), and then install the bracket screws (callout 2).
3.
Install the PDB assembly:
a.
Place the PDB assembly on the chassis (callout 1).
b.
Use the power backplane bracket to slide the assembly towards the rear chassis (callout 2).
c. Install the PDB assembly screws (callout 3).
Removal and replacement procedures
63
