Access panel
To access internal components, you must remove the access panel:
1. Prepare the computer for disassembly (
Preparation for disassembly on page 25).

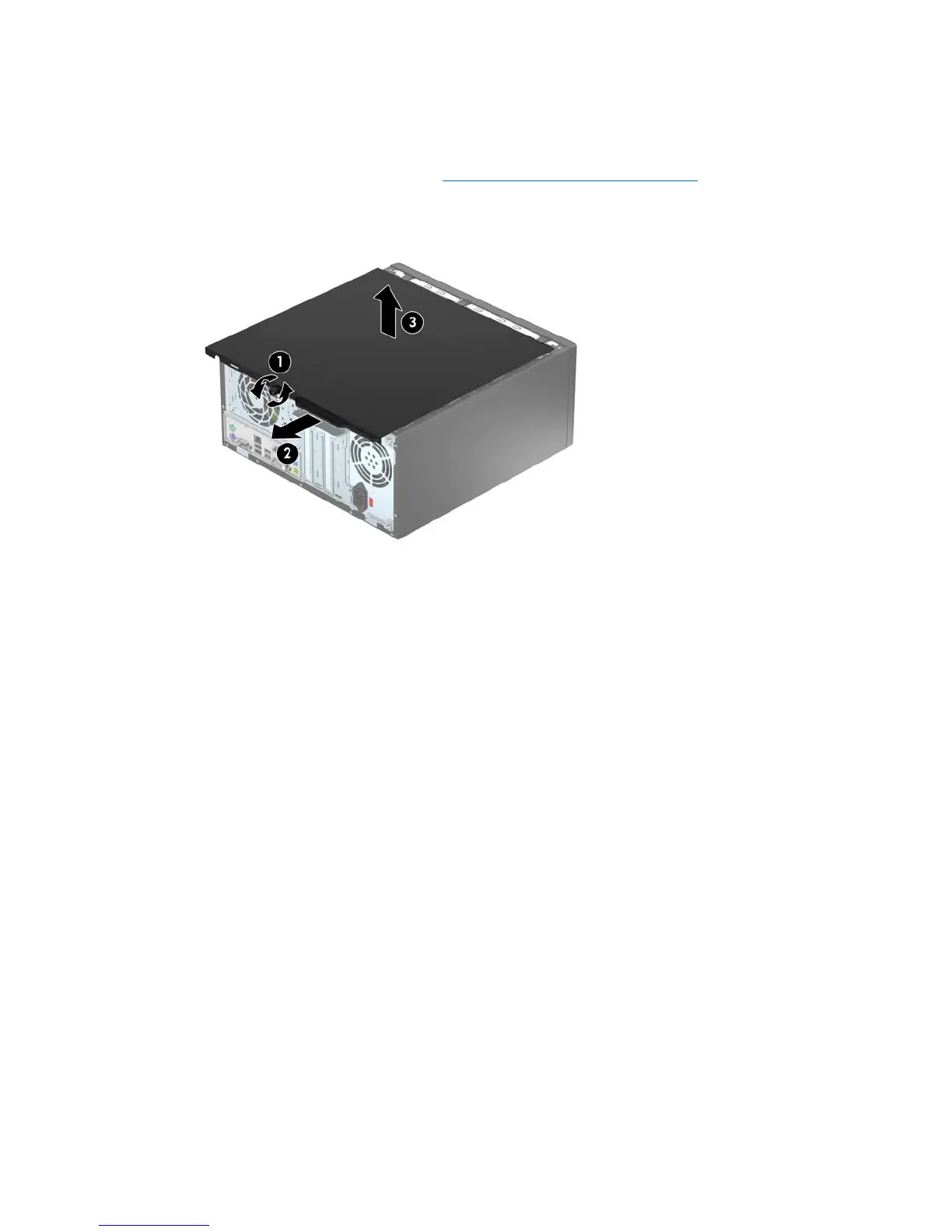

2. Loosen the thumbscrew on the rear of the computer (1) then slide the panel back (2) and lift if off the
computer (3).
26 Chapter 5 Removal and replacement procedures: Microtower
