Optical drive bezel blank
On some models, there are bezel blanks covering the slim optical drive, 3.5-inch, and 5.25-inch drive bays
that need to be removed before installing a drive. To remove a bezel blank:
1. Remove the access panel (
Access panel on page 26)
2. Remove the front bezel (
Front bezel on page 27)

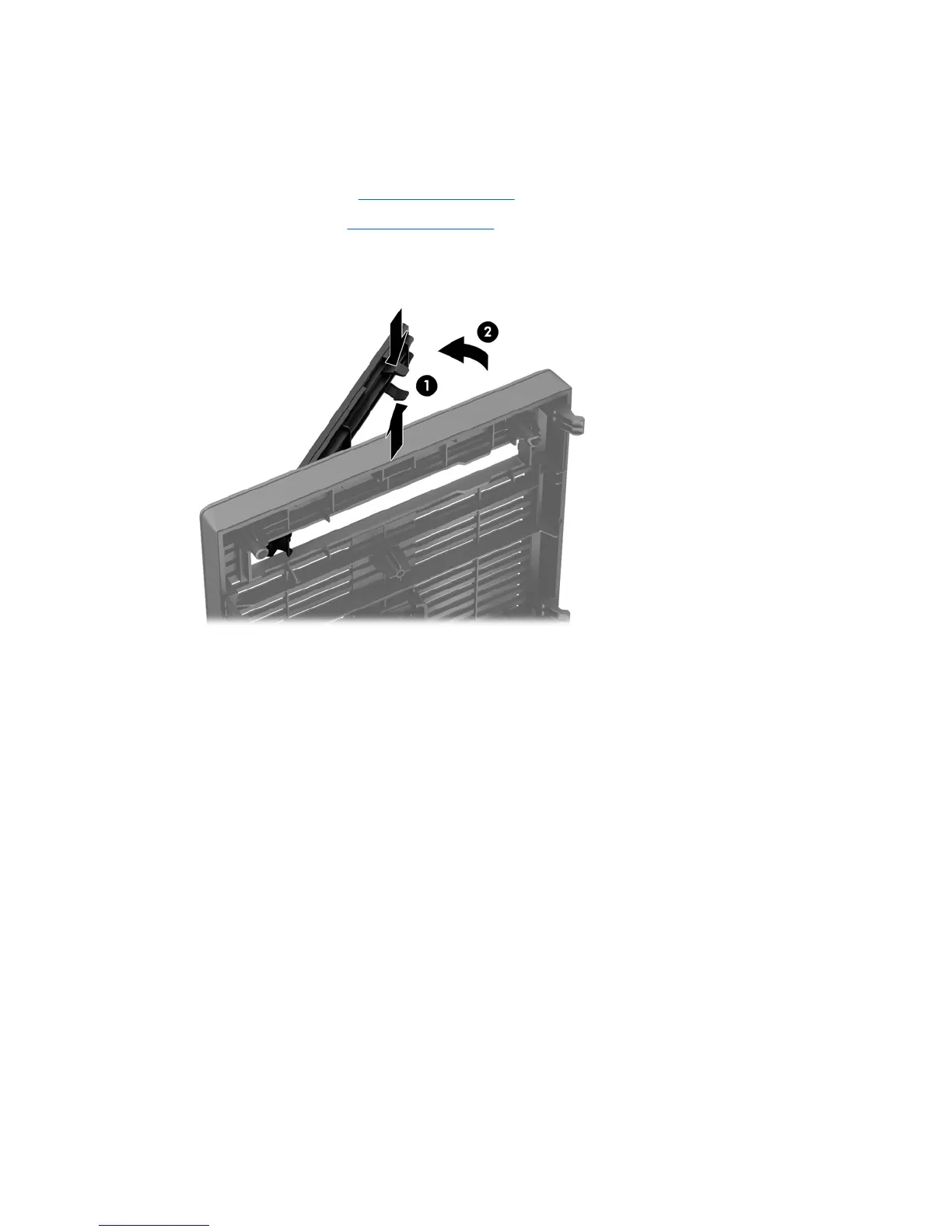

3. To remove the bezel blank, press upward on the bottom tab and press downward on the top tab on the
right side of the blank (1), and then rotate the blank off the front of the bezel (2).
28 Chapter 5 Removal and replacement procedures: Microtower
