Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain
before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to
the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing
memory modules while voltage is present may cause irreparable damage to the memory modules or system
board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important
to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting
from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning
these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal
object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the
module.
1. Prepare the computer for disassembly (Preparation for disassembly on page 25).
2. Remove the access panel (
Access panel on page 26)

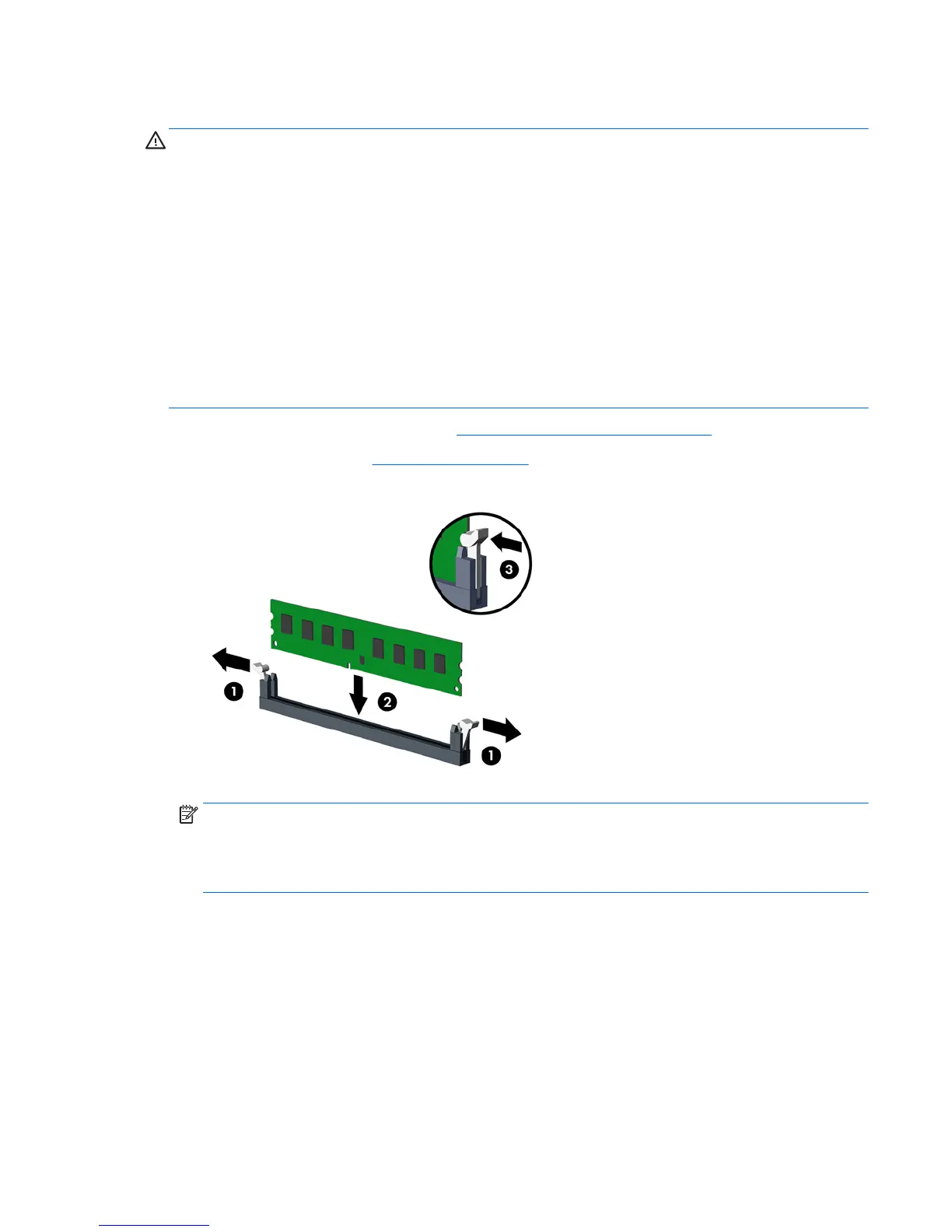

3. Open both latches of the memory module socket (1), and insert the memory module into the socket (2).
In HP ProDesk 490 G2 models, populate the black DIMM sockets before the white DIMM sockets.
NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab
on the memory socket.
For maximum performance, populate the sockets so that the memory capacity is spread as equally as
possible between Channel A and Channel B.
4. Push the module down into the socket, ensuring that the module is fully inserted and properly seated.
Make sure the latches are in the closed position (3).
5. Repeat steps 3 and 4 to install any additional modules.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
Memory 31
