HP ProLiant DL385 G7 - System Board Component Identification

Component identification 86

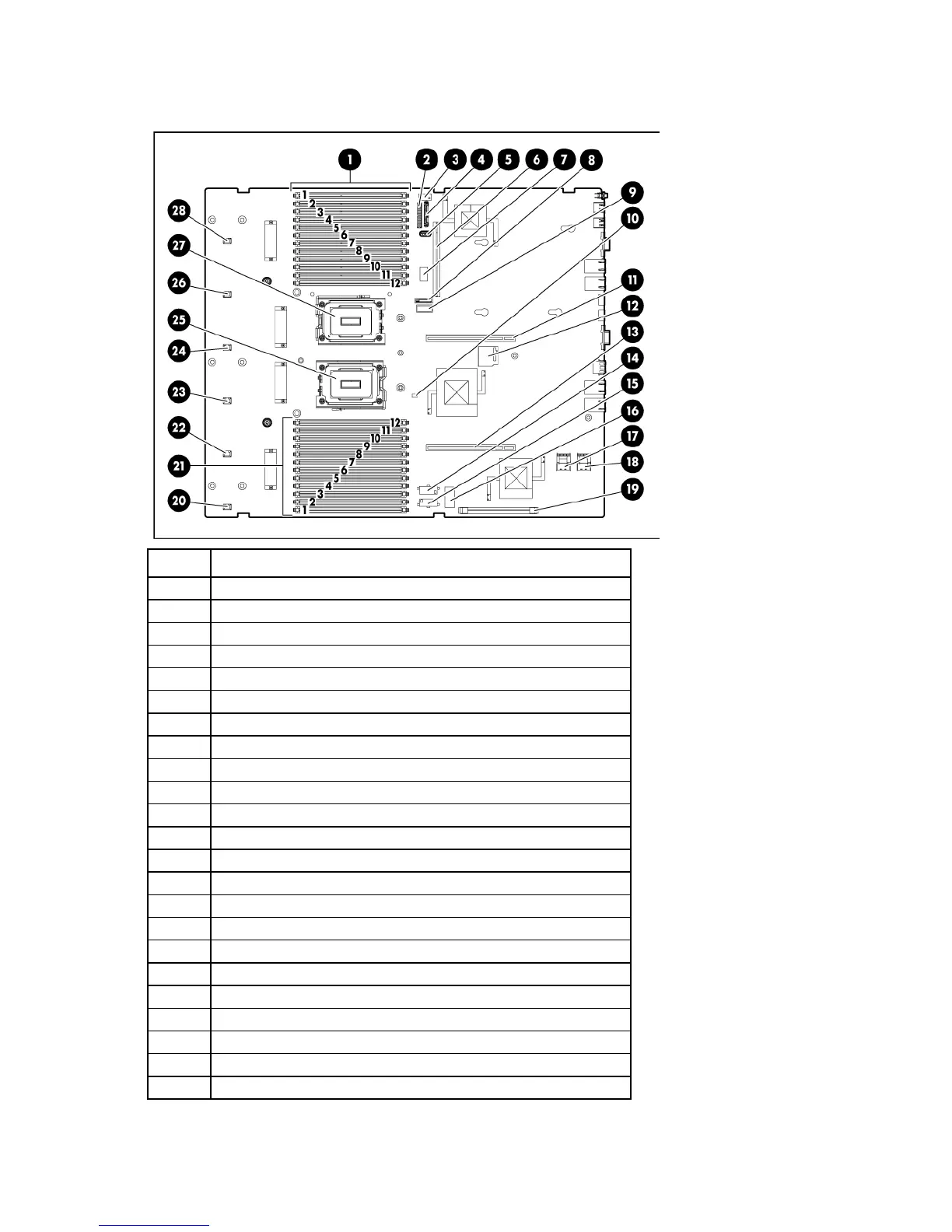

System board components
Item Description
1
Processor 2 memory sockets
2
Front I/O connector
3
USB tape connector*
4
SATA optical drive connector
5
USB connector
6
Power supply backplane connector
7
System maintenance switch
8
System battery connector
9
TPM connector
10
NMI jumper
11
Primary riser connector
12
SD card connector
13
Secondary riser connector
14
Secondary SAS power connector
15
Primary SAS power connector
16
Diagnostics LEDs
17
Primary SAS data connector
18
Secondary SAS data connector
19
SAS cache connector
20
Fan 1 connector
21
Processor 1 memory sockets
22
Fan 2 connector
23
Fan 3 connector
