HP ProLiant DL580 Gen10 - System Board Components

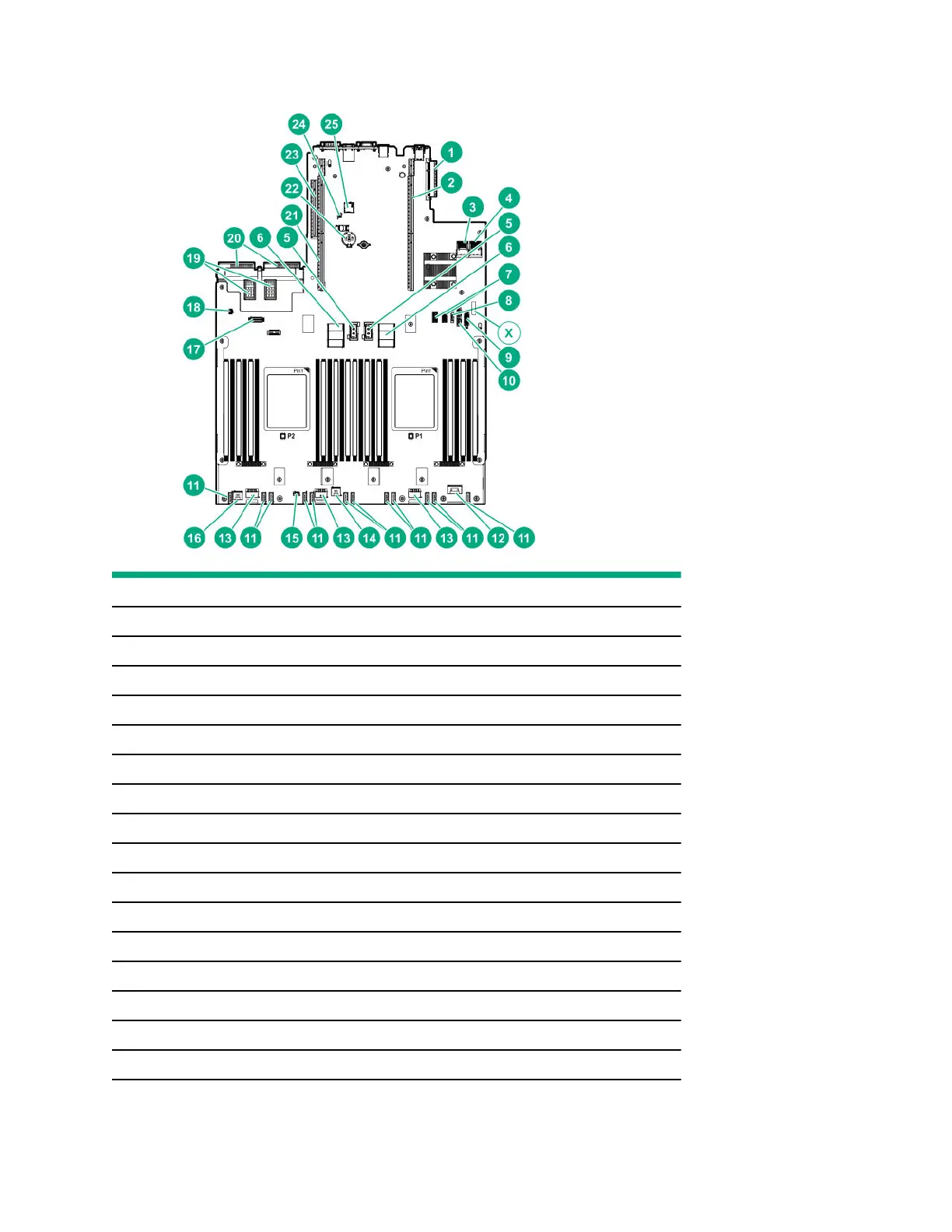

System board components
Item Description
1 FlexibleLOM connector
2 Primary PCIe riser connector (processor 1 required)
3 x4 SATA port 1
4 x4 SATA port 2
5 Upper processor mezzanine connector — Power (2)
6 Upper processor mezzanine connector — Signals (2)
7 USB 30 (2)
8 x1 SATA port
X System maintenance switch
9 Front USB 30 connector and iLO Service Port
10 x1 SATA port / Optical Drive port
11 Fan connectors (12)
12 Front power switch connector
13 Drive backplane power connectors (3)
14 Energy pack connector 1 (system board and controllers)
1
15 Optional 2SFF HDD x1 SATA board sideband connector
Table Continued
124 Component identification
