1.0 gm (0.5 ml) or two 0.5 gm (0.25 ml) of thermal grease
ProcedureProcedure

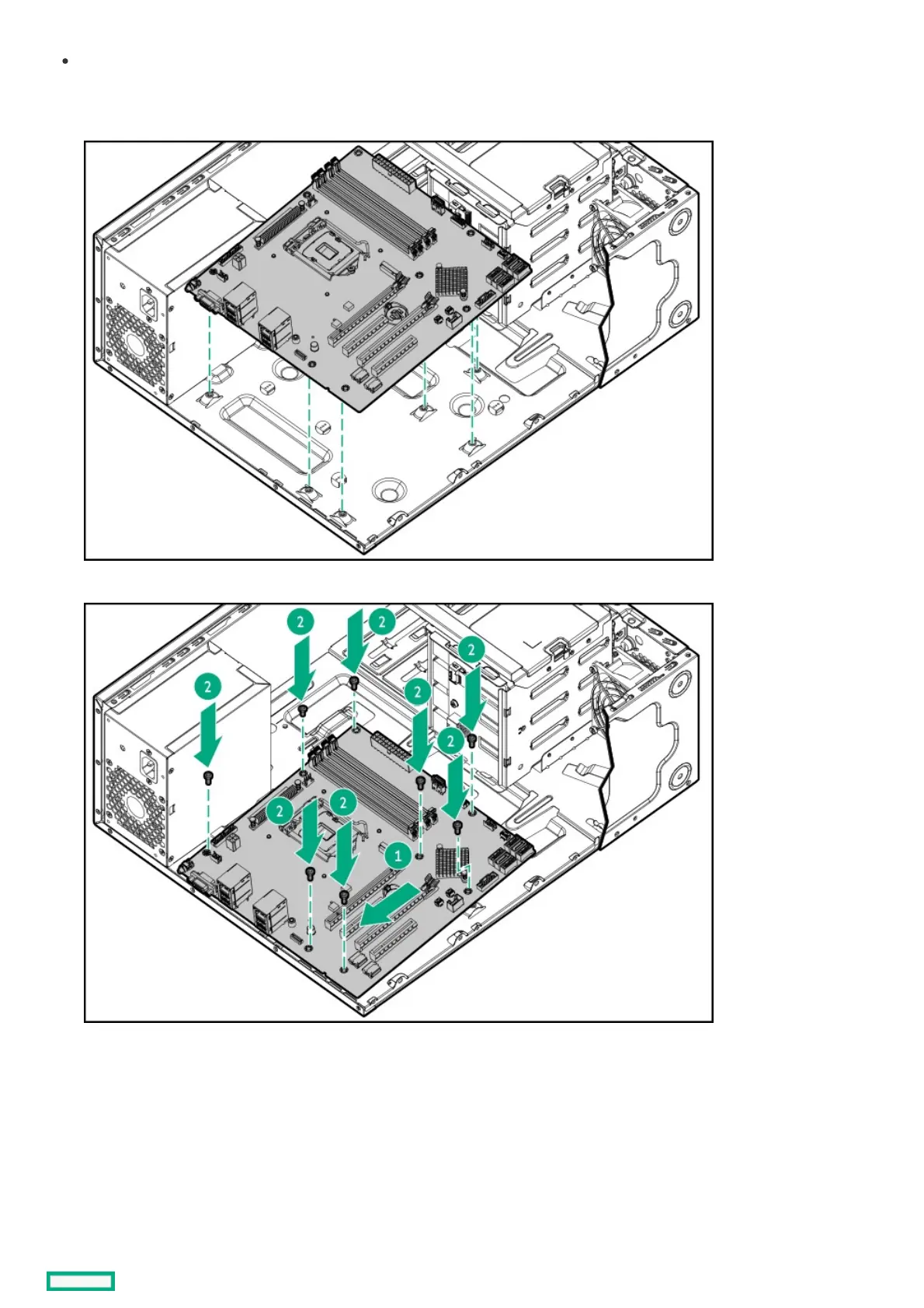

1. Position the system board over te alignment tabs on the chassis.
2. Install the system board (callout 1), and then secure the board with the screws (callout 2).
3. Open the processor load plate:
a. Push the processor locking lever down to unclip, and then lift it upwards (callout 1).
b. Open the processor load plate (callout 2).
