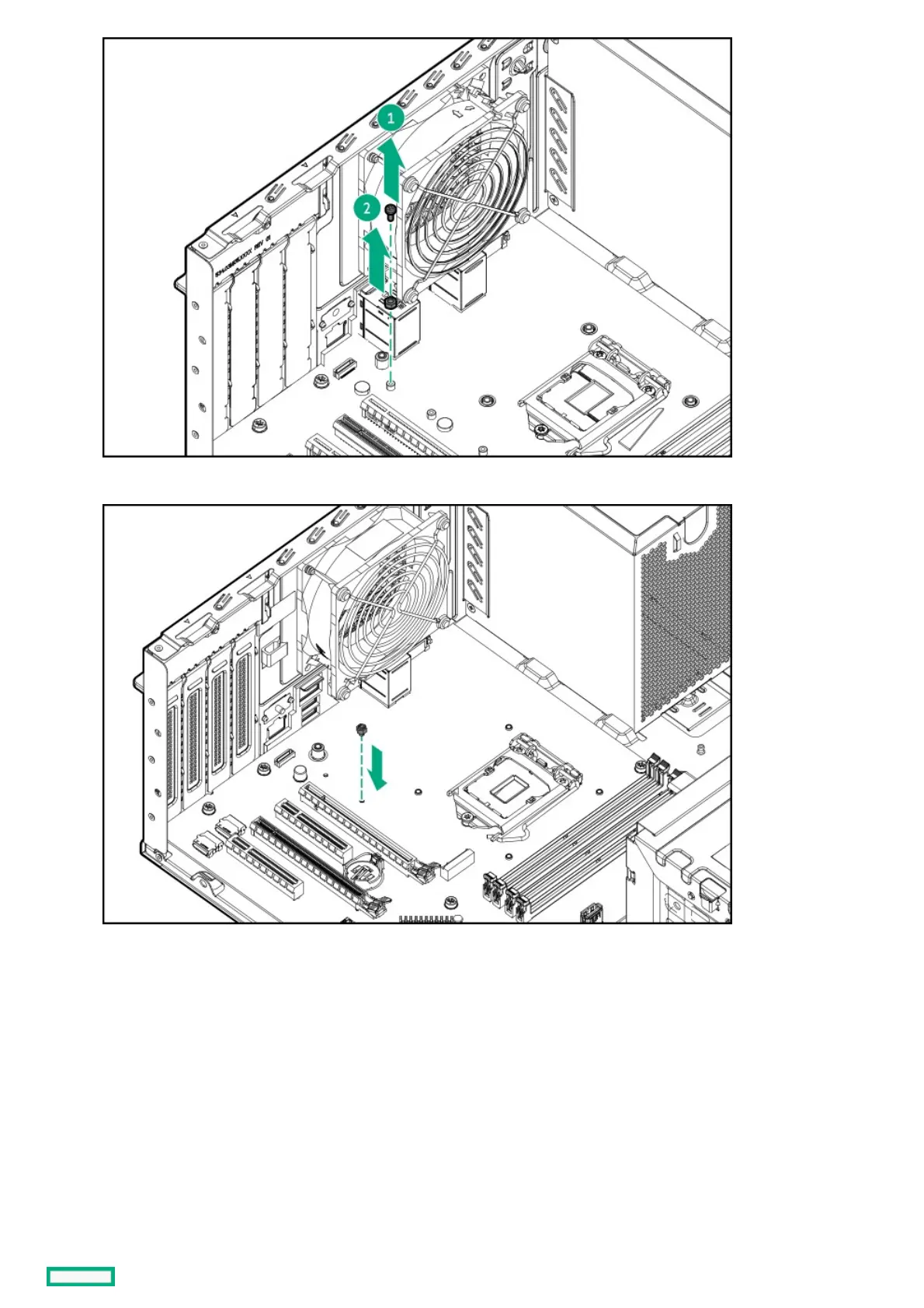

b. Install the removed hex nut on the 2280 standoff.

8. If you are installing an M.2 22110 SSD, remove the SSD mounting screw from the 22110 standoff.

Installing an M.2 SSD on the system board 153
