Remove the front bezelRemove the front bezel

ProcedureProcedure

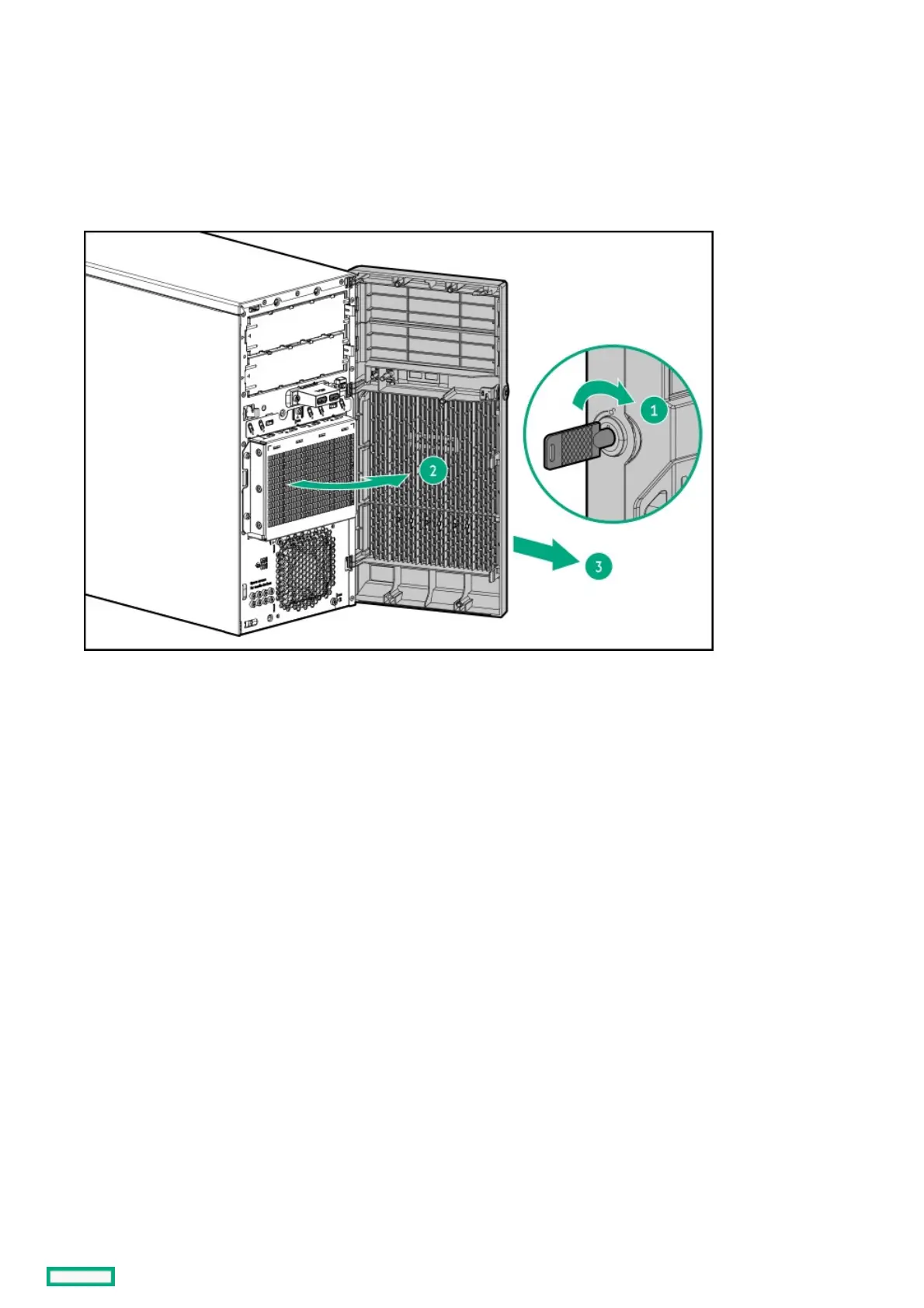

1. Unlock the front bezel.

2. Open the front bezel.

3. Pull the front bezel away from the chassis.

Remove the front bezel 38
