HP ProLiant ML30 Gen10 Plus - Non-Hot-Plug Power Supply Cabling

Non-hot-plug power supply cablingNon-hot-plug power supply cabling

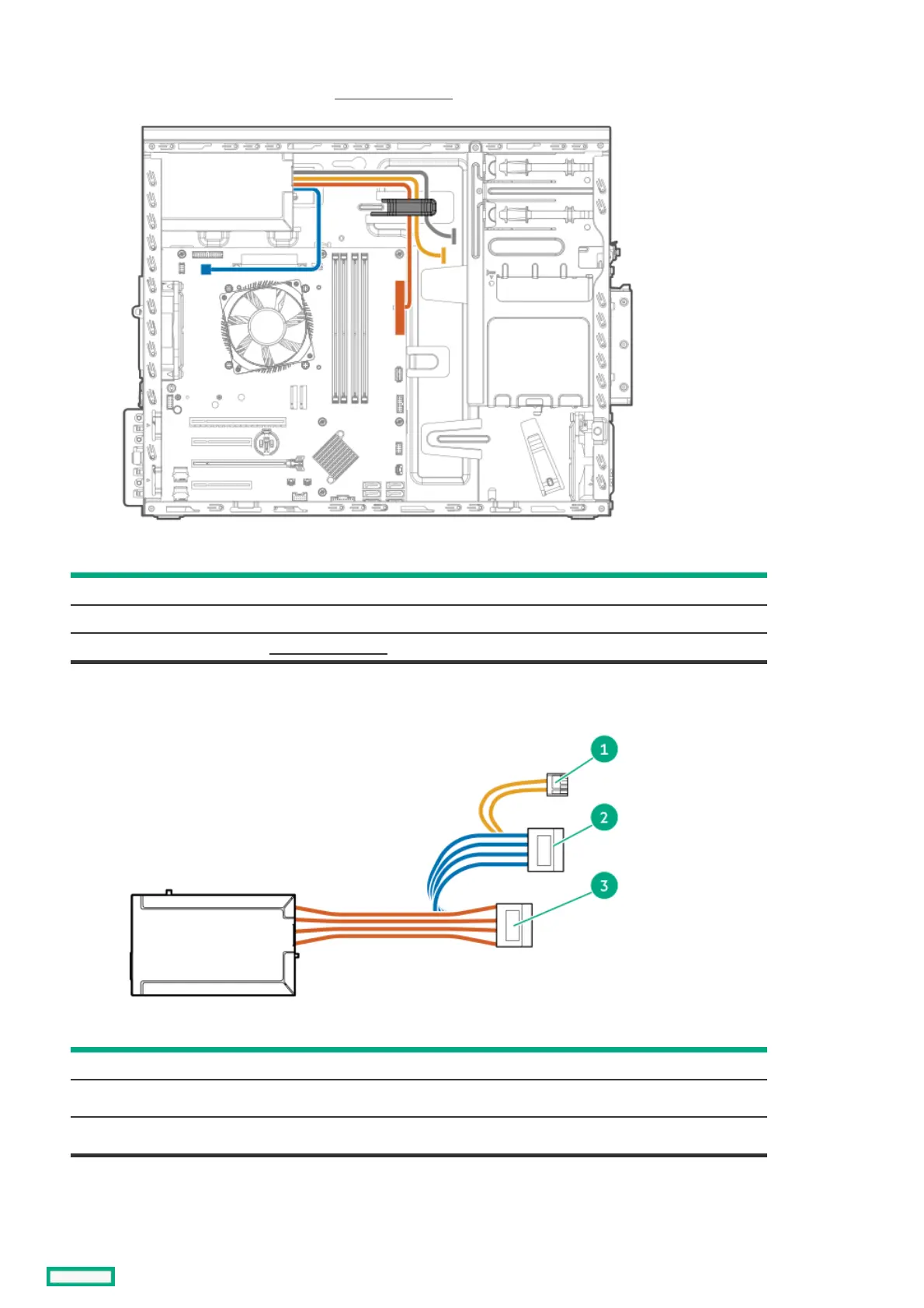

The gray cable in the following diagram is the power fan-out cable.
ColorColor DescriptionDescription
Orange 24-pin power supply cable
Blue 4-pin power supply cable
Gold Drive power cabling
Non-hot-plug power supply fan-out cableNon-hot-plug power supply fan-out cable connectors connectors
ItemItem Cable labelCable label ConnectionConnection
1 P4 Connects to the optical drive
2 P10 Connects to the LTO/RDX power extension cable
3 P9 Connects to the LTO/RDX power extension cable
Non-hot-plug power supply cabling 197
