HP ProLiant ML30 Gen10 Plus - LFF; 8 SFF Hot-Plug Drive Controller Cabling

4 LFF / 8 SFF hot-plug drive controller cabling4 LFF / 8 SFF hot-plug drive controller cabling

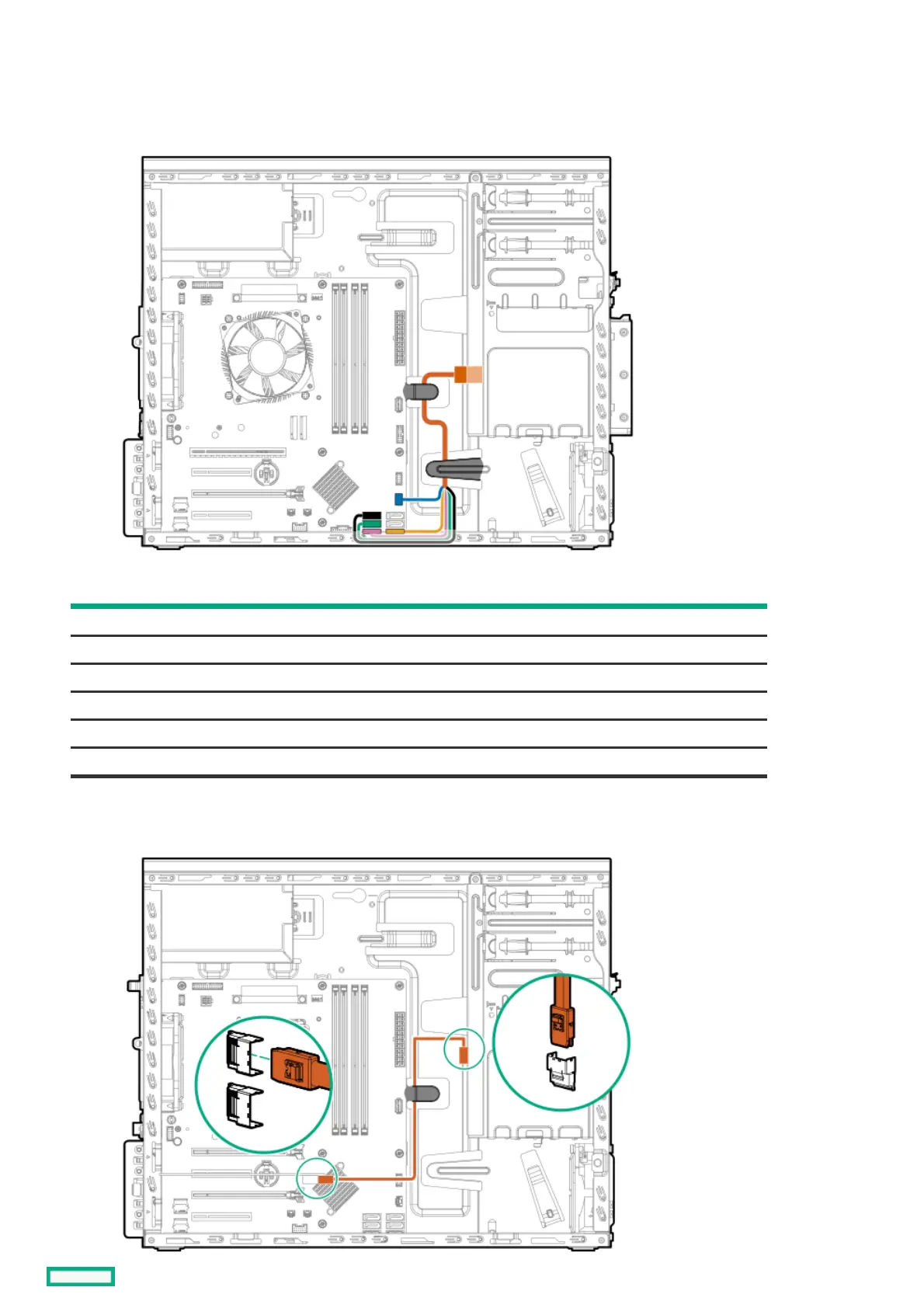

4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling4 LFF / 8 SFF hot-plug drive: Onboard SATA cabling
The onboard SATA cabling for the 4 LFF and 8 SFF drive configurations use a single Mini-SAS splitter cable.
ColorColor Mini-SAS splitter cable connectionMini-SAS splitter cable connection
Orange Drive backplane
Blue Drive backplane sideband connector
Gold Onboard SATA port 1
Pink Onboard SATA port 4
Green Onboard SATA port 3
Black Onboard SATA port 2
4 LFF hot-plug drive: Type-p controller cabling4 LFF hot-plug drive: Type-p controller cabling
4 LFF / 8 SFF hot-plug drive controller cabling 178
