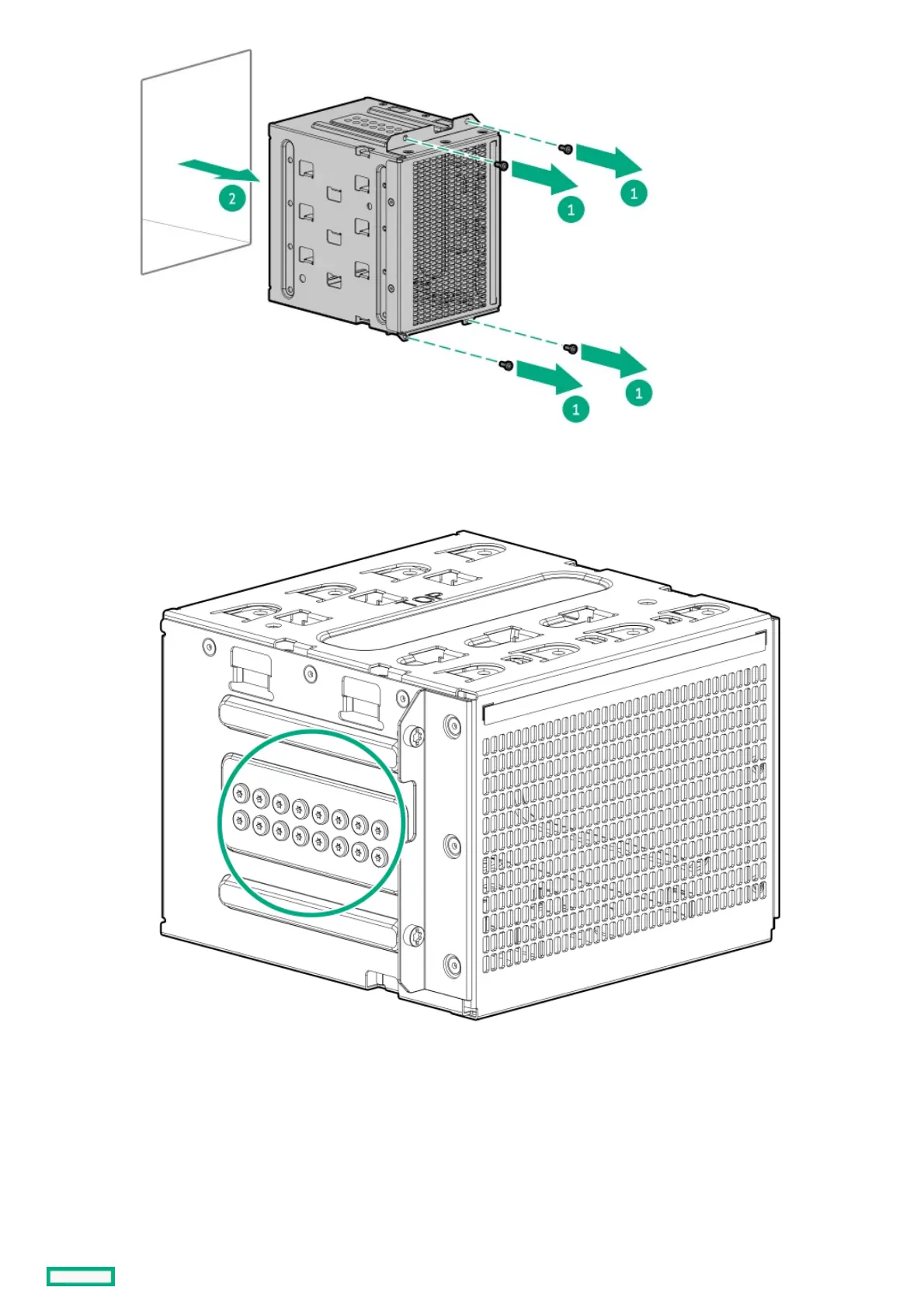

9. Remove the correct number of screws from the drive cage.

Each drive requires four screws.

10. Install the non-hot-plug drive.

Installing a non-hot-plug LFF SATA drive 84
