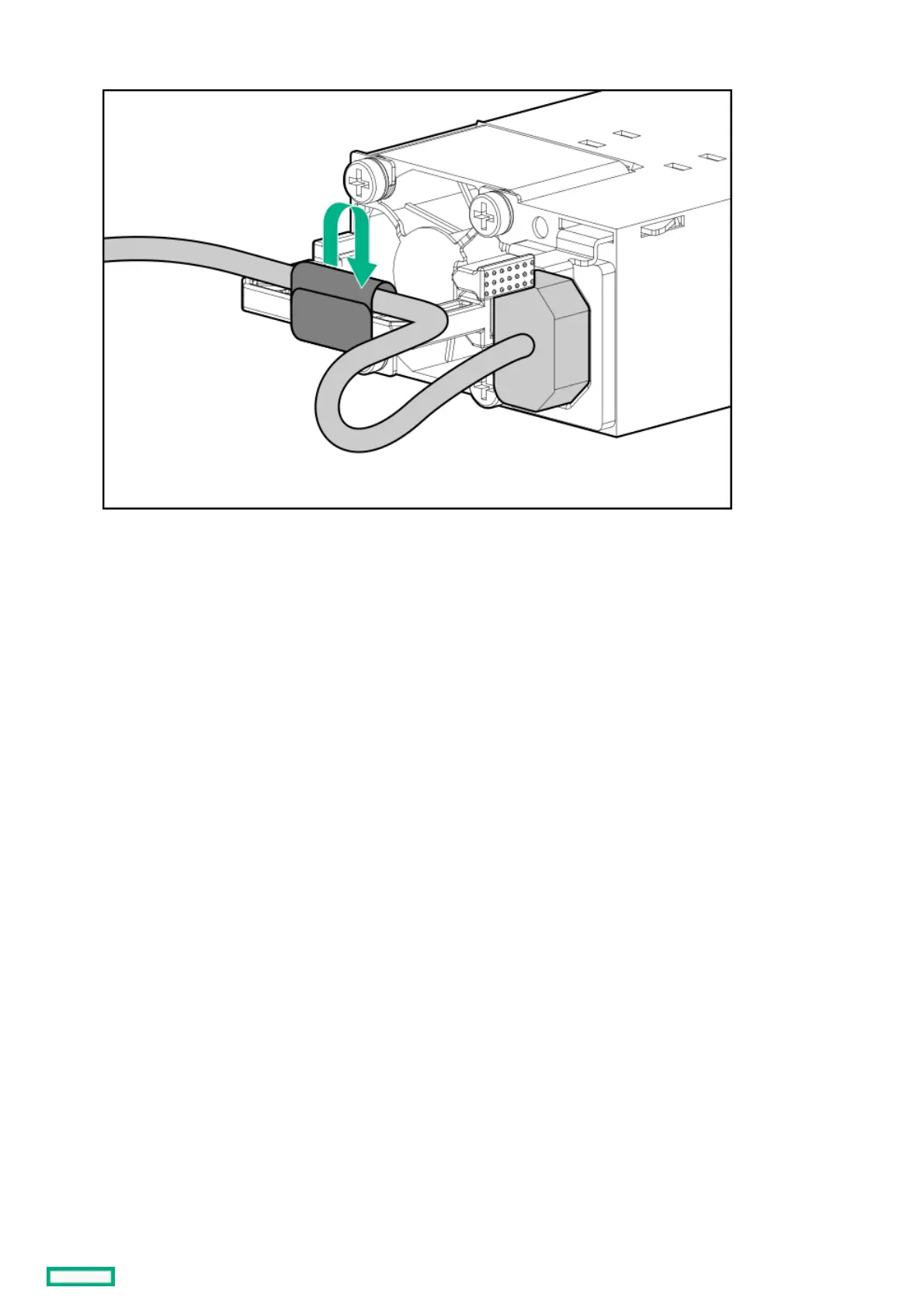

b. Secure the power cord with the strain relief strap. Roll the extra length of the strap around the power supply handle.

5. Connect each power cord to the power source.

6. Make sure that the power supply LED is green.

The installation is complete.

Installing a Flexible Slot power supply 94
