HP ProLiant ML370 G5 - Systems Insight Display Leds

Component identification 10
Systems Insight Display LEDs

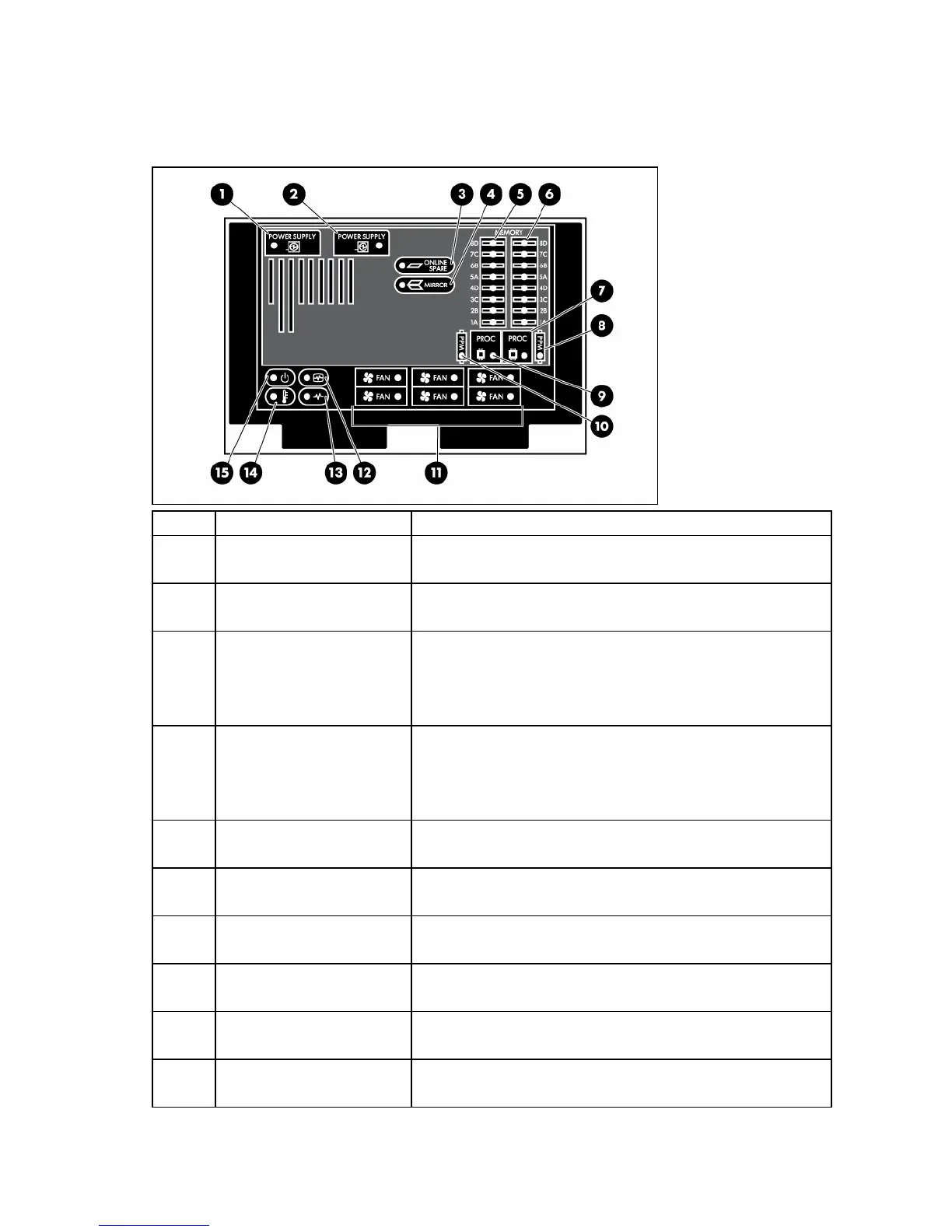

To view a quick reference for component identification and status, access the Systems Insight Display
("Access the HP Systems Insight Display" on page 21).
Item Description Status
1 Primary power supply LED Amber = Failure
Off = Normal
2 Redundant power supply LED Amber = Failure
Off = Normal
3 Online spare memory LED Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
Off = No protection
4 Mirrored memory LED Green = Protection enabled
Amber = Memory failure occurred
Flashing amber = Memory configuration error
Off = No protection
5
FBDIMM LEDs*
(memory board 1)
Amber = Failure
Off = Normal
6
FBDIMM LEDs*
(memory board 2)
Amber = Failure
Off = Normal
7 Processor 1 LED Amber = Failure
Off = Normal
8 PPM 1 LED Amber = Failure
Off = Normal
9 Processor 2 LED Amber = Failure
Off = Normal
10 PPM 2 LED Amber = Failure
Off = Normal
