HP ProLiant ML370 G5 - Rear Panel Leds

Component identification 12
Item Description
8 PCI expansion slots
9 Hot-plug power supply (primary bay)
10 Hot-plug power supply blank (redundant bay)
11 NIC 1 connector
12 T-15 Torx screwdriver

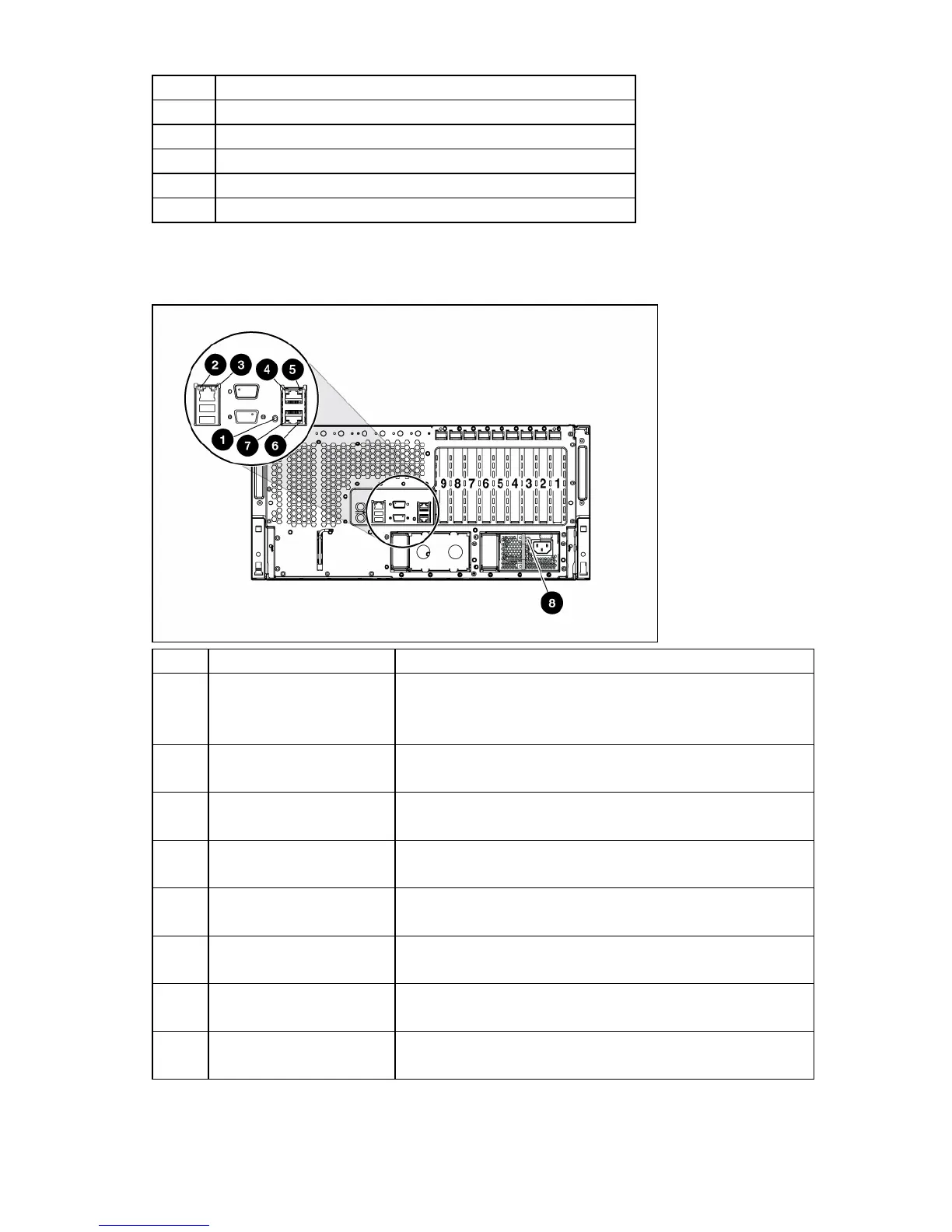

Rear panel LEDs
Item Description Status
1 UID LED Blue = Activated
Flashing blue = system is being remotely managed
Off = Deactivated
2 iLO 2 activity LED Green or flashing green = Network activity
Off = No network activity
3 iLO 2 link LED Green = Linked to network
Off = No network connection
4 NIC 2 activity LED Green or flashing green = Network activity
Off = No network activity
5 NIC 2 link LED Green = Linked to network
Off = No network connection
6 NIC 1 link LED Green = Linked to network
Off = No network connection
7 NIC 1 activity LED Green or flashing green = Network activity
Off = No network activity
8 Power supply LED Green = System has AC power and is powered up
Off = System has no AC power
