HP R5500 User Manual
5
of 1
of 1 rating
61 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

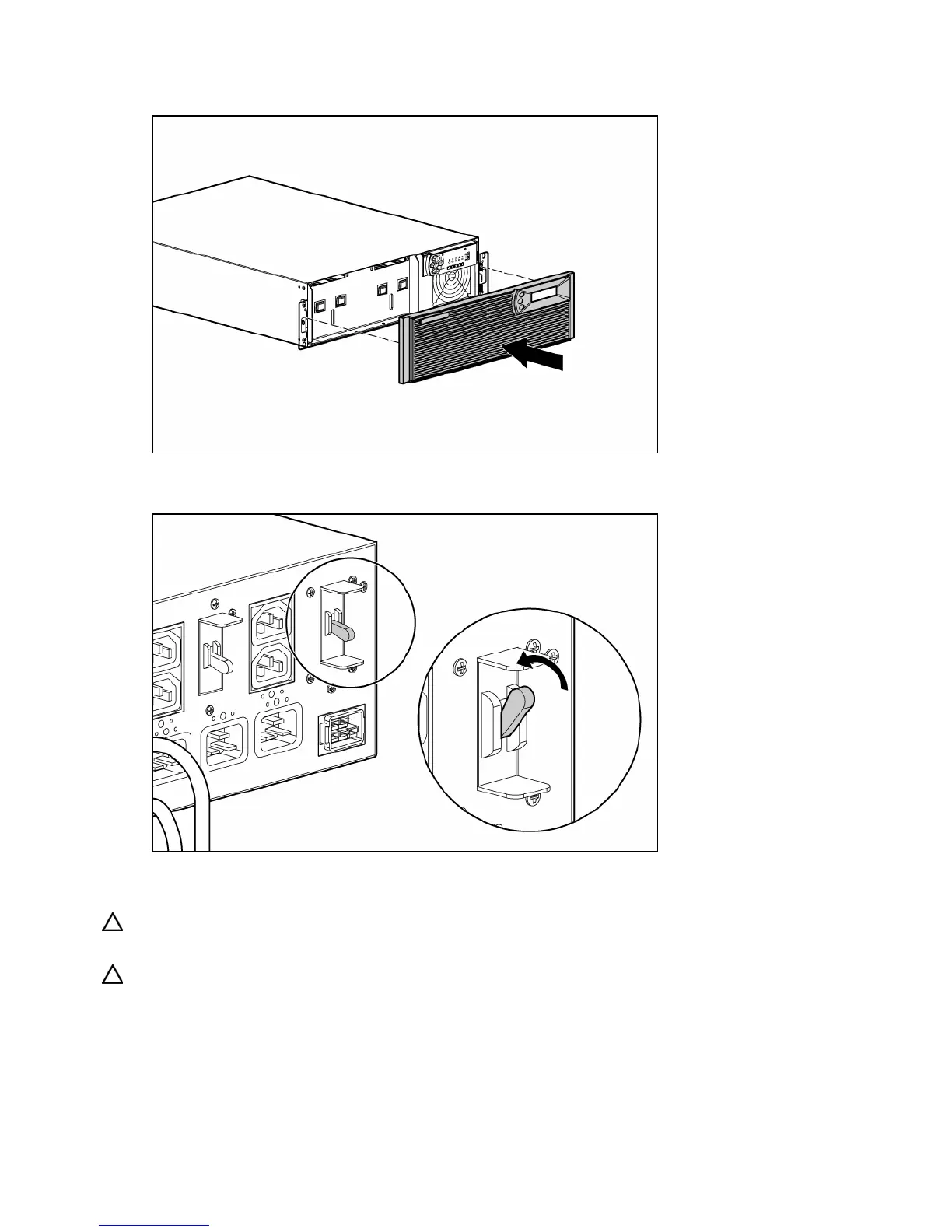

Installation 18
Attaching the UPS front bezel
Switching on the UPS battery circuit breaker
Connecting the serial communications port
CAUTION:
Use only the computer interface cable supplied with the UPS to connect the communication
s
port to the host computer.
CAUTION:
Using a USB to serial conver
ter cable will damage the UPS.
17
19
Table of Contents
User Guide
1
Table of Contents
3
Component Identification
6
UPS R5500 Overview
6
UPS Front Panel
6
In this Section UPS R5500 Overview
6
UPS Front Panel Controls
7
UPS Front Panel LED Indicators
8
UPS Rear Panel
9
REPO Port
9
ERM Rear Panel
10
Installation
11
Precautions
11
Preparing to Install the Hardware
11
In this Section Precautions
11
Readying the Equipment
12
Selecting a Site
12
Tools and Materials
12
Installing the Mounting Rails
13
Preparing the Rails for Integrated Shipping
15
Installing the UPS
15
Removing the UPS Battery Bracket
16
Installing the Batteries
17
Replacing the UPS Battery Bracket
17
Attaching the UPS Front Bezel
18
Switching on the UPS Battery Circuit Breaker
18
Connecting the Serial Communications Port
18
Connecting the REPO Port
19
Connecting the Ground Bonding Cable
21
Connecting the UPS to Utility Power
21
Connecting Devices to the UPS
21
Connecting the UPS Cord Retention Clips
22
Charging the UPS Batteries
22
Starting Power to the Load
23
Installing the ERM
23
Attaching the ERM Front Bezel
24
Switching off the ERM Circuit Breaker
24
Connecting the ERM to the UPS
25
Switching on the ERM Circuit Breaker
25
Charging the ERM Batteries
25
UPS Operations
26
Modes of Operation
26
Standby Mode
26
Operate Mode
26
Configure Mode
27
Auto-Bypass Mode
27
Configuring the UPS
27
Testing the Leds
28
Silencing an Audible Alarm
28
Verifying the REPO Port Connection
29
Powering down the UPS
29
Power Management
30
Power Management Software
30
Maintenance
31
Removing the UPS Front Bezel
31
Removing the ERM Front Bezel
32
Replacing the UPS Electronics Module
32
Replacing the UPS Option Card
33
Replacing the Batteries
34
Important Battery Safety Information
34
Battery Care and Storage Guidelines
34
UPS Battery Replacement Procedure
35
Replacing the UPS
35
Replacing the ERM
36
Updating the UPS Firmware
37
Troubleshooting
38
LED and Audible Alarm Troubleshooting
38
Battery Condition
39
Bypass Is out of Range
39
General Alarm Condition
40
Input Voltage Is out of Range
40
Insufficient Warning of Low Batteries
40
Internal UPS Fault Condition
40
Low Battery Shutdowns
41
Overload Condition
41
REPO Condition
41
Site Wiring Condition
41
UPS Does Not Provide the Expected Backup Time
41
UPS Does Not Start
42
UPS Frequently Switches between Utility and Battery Power
42
UPS Is in Auto-Bypass Mode
42
UPS Is on Battery
42
Utility Power Condition
42
Specifications
43
UPS Physical Specifications
43
ERM Physical Specifications
43
UPS Input Specifications
43
UPS Output Specifications
44
Power Protection Specifications
44
Voltage Specifications
44
Output Tolerance Specifications
45
Output Feature Specifications
45
Battery Specifications
45
Battery Runtime for NA/JPN Model
45
Battery Runtime for INTL Model
45
Environmental Specifications
46
REPO Port Specifications
46
Spares
47
Ordering Spares
47
UPS Spare Parts List
47
Hardware Options
48
Technical Support
49
Before You Contact HP
49
HP Contact Information
49
Warranty Information
50
Limited Warranty
50
250,000 Computer Load Protection Guarantee
50
Pre-Failure Battery Warranty
50
Regulatory Compliance Notices
52
Regulatory Compliance Identification Numbers
52
Federal Communications Commission Notice
52
FCC Rating Label
52
Class a Equipment
53
Class B Equipment
53
Declaration of Conformity for Products Marked with the FCC Logo, United States Only
53
Modifications
54
Cables
54
Canadian Notice (Avis Canadien)
54
European Union Regulatory Notice
54
Disposal of Waste Equipment by Users in Private Households in the European Union
55
Japanese Notice
55
BSMI Notice
55
Battery Replacement Notice
55
Taiwan Battery Recycling Notice
56
Power Cord Statement for Japan
56
Electrostatic Discharge
57
Preventing Electrostatic Discharge
57
Grounding Methods to Prevent Electrostatic Discharge
57
Acronyms and Abbreviations
58
Index
59
Other manuals for HP R5500
Quickspecs
12 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP R5500 and is the answer not in the manual?
Ask a question
HP R5500 Specifications
General
Brand
HP
Model
R5500
Category
UPS
Language
English
Related product manuals
HP UPS R5500 ERM
6 pages
HP R5000
62 pages
HP R5000 ERM
6 pages
HP R1500
49 pages
HP R3000
79 pages
HP R3000 ERM
6 pages
HP R/T3000 G4 ERM
31 pages
HP R1500 - UPS XR
115 pages
HP R/T3000 G4 INTL
31 pages
HP R/T2200 G4 NA/JP
31 pages
HP R/T3000 G4 LV NA/JP
31 pages
HP Enterprise R1500 G4 UPS
24 pages
