HP R5500 User Manual

Maintenance 33
7.
Replace the screw.
8. Replace the option card.
9. Reconnect the external cable to the card.
10. Verify that the UPS is configured to the proper voltage and number of attached ERMs. See
"Configuring the UPS (on page 27)."
11. Replace the front bezel.

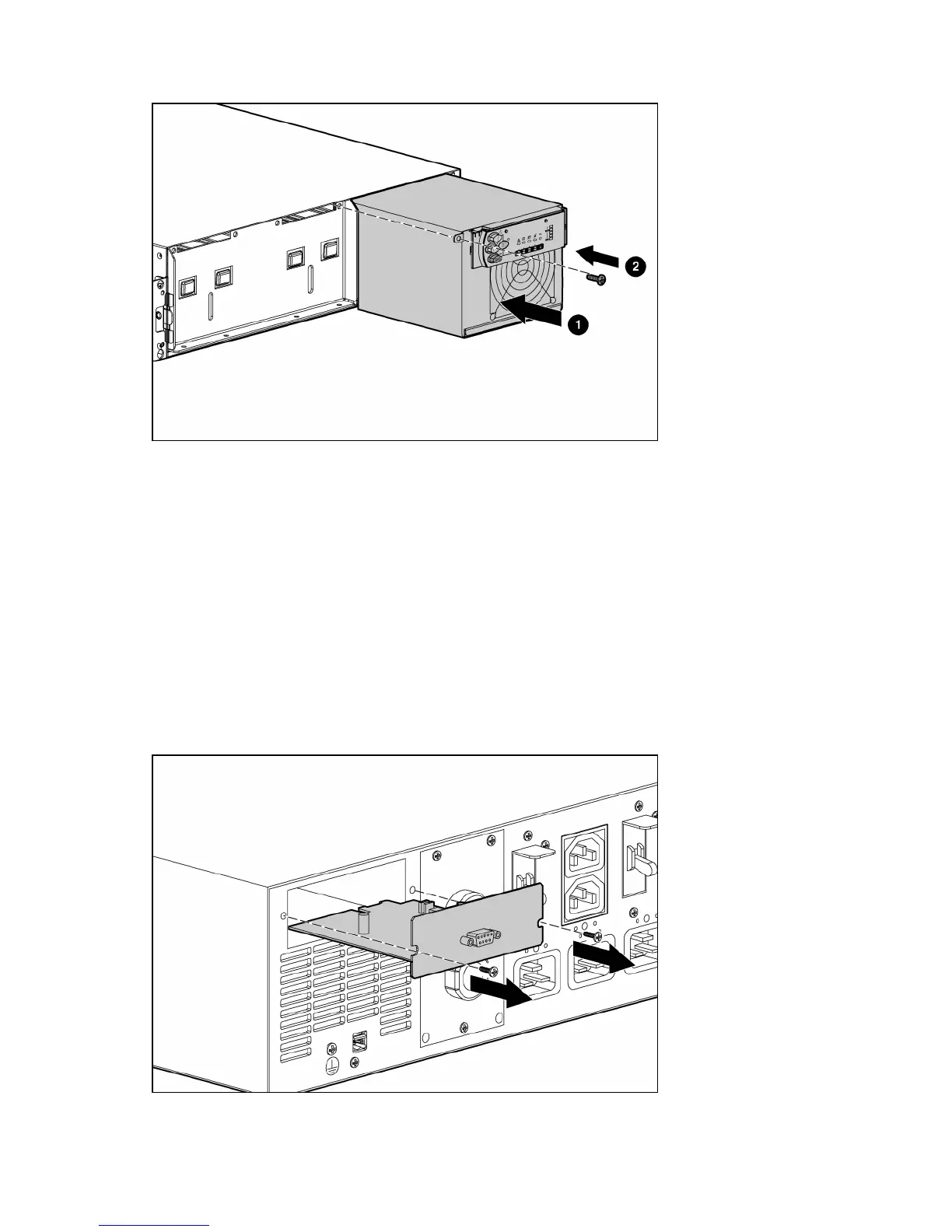

Replacing the UPS option card
This component is hot-swappable and can be replaced without powering down the UPS.
1. (optional) To replace the component with the UPS powered down, refer to "Powering down the UPS
(on page 29)."
2. Disconnect the communications cable from the option card.
3. Remove the two screws securing the option card and slide the card out.

HP R5500 Specifications

General

Brand	HP
Model	R5500
Category	UPS
Language	English
