Component identification 8

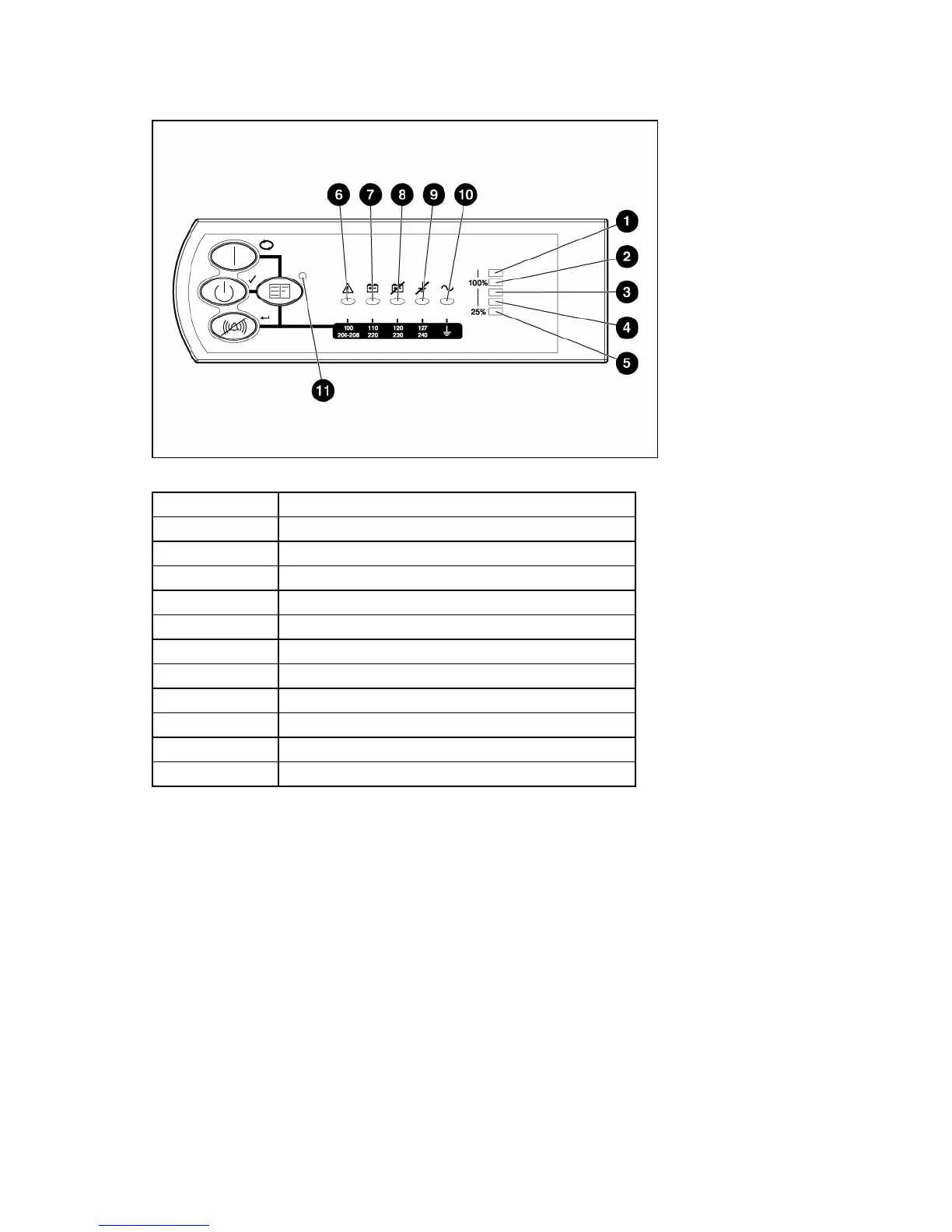

UPS front panel LED indicators
The front panel is shown with the bezel removed.
Item LED description
1 Overload
2 76% to 100% load
3 51% to 75% load (2 ERMs)
4 26% to 50% load (1 ERM)
5 0% to 25% load (0 ERMs)
6 General Alarm
7 On Battery
8 Battery Fault
9 Site Wiring Fault
10 Utility
11 Configure Mode On
For more information, see "LED and audible alarm troubleshooting (on page 38)" .
