Component identification 7

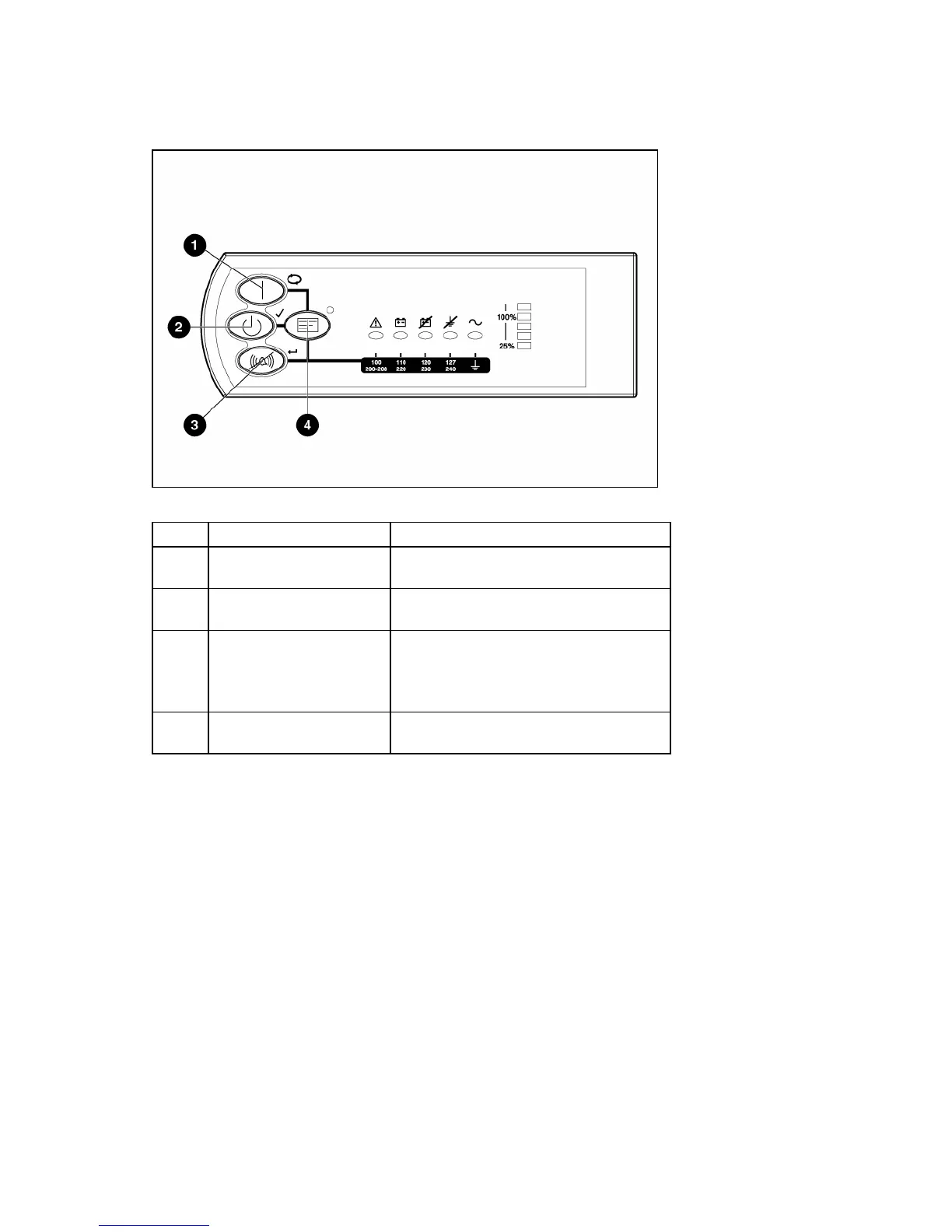

UPS front panel controls
The front panel is shown with the bezel removed.
Item Description Function
1 On button
Powers up the UPS ("Starting power to the
load" on page 23)
2 Standby button
Places the UPS in Standby mode (on page
26)
3 Test/Alarm Reset button
• Silences UPS alarms ("Silencing an
audible alarm" on page 28)
• Tests the LEDs ("Testing the LEDs" on
page 28)
4 Configure button
Places the UPS in Configure mode (on page
27)
