Blower
Description Spare part number
Blower 702774-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 46).
2. Remove the rear I/O panel (
Rear I/O Panel on page 49).
3. Remove the mounting bracket cover (
Mounting Bracket Cover on page 53).
4. Remove the display head back panel (
Display Head Back Panel on page 54).
5. Remove the display head from the stand (
Removing the Display Head from the Stand
on page 90).
6. Remove the rear metal plate (
Rear Metal Plate (EMI shield) on page 91).
7. Remove the three Torx screws (1) that secure the blower to the computer.
8. Disconnect the blower control cable from the system board connector labeled CPUFAN (2).

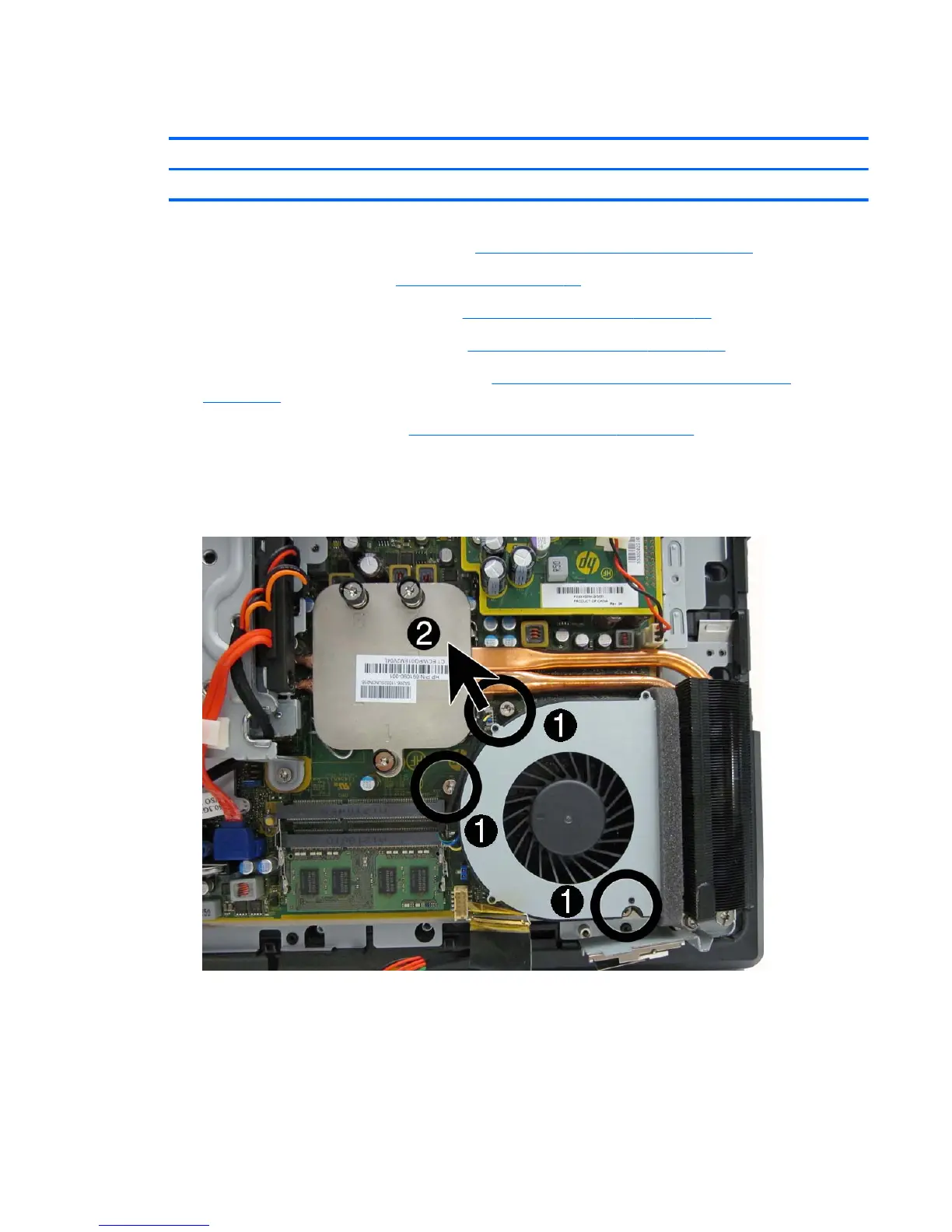

Figure 8-1 Removing the blower screws and disconnecting the cable
Blower 95
