configuration provides easier access to the head server when cabling multiple enclosures. There
is a 1U support shelf underneath the lowest disk enclosure.
NOTE: If you choose not to follow one of the recommended configurations, your system may
experience errors with the StoreOnce SAS check function that checks SAS cable integrity.

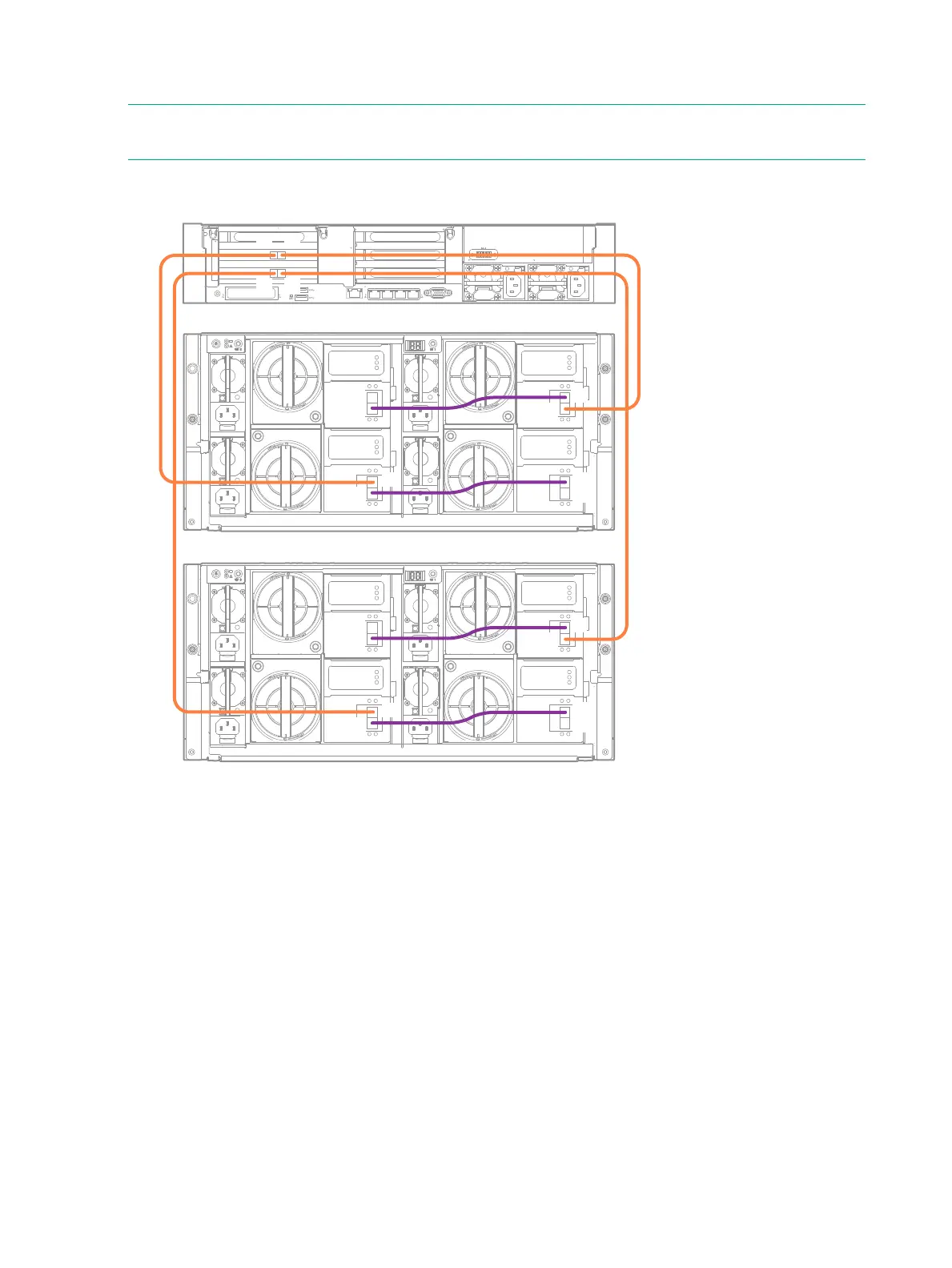

Figure 3 Cabling showing two enclosures installed below the head server
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
IOM A
IOM B
IOM A
IOM B
IOM A
IOM B
IOM A
IOM B
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P2
P1
P1P2
P1P2
#2
#1
14 SAS cabling for StoreOnce 5500 Systems
