HP StoreOnce 3100 System Installation And Configuration Guide

StoreOnce 3100 System
The StoreOnce 3100 System comprises a 1U 4–disk server, that provides four 1 GbE ports for
connecting to an Ethernet network. It does not support 10 GbE Network or Fibre Channel
connection.

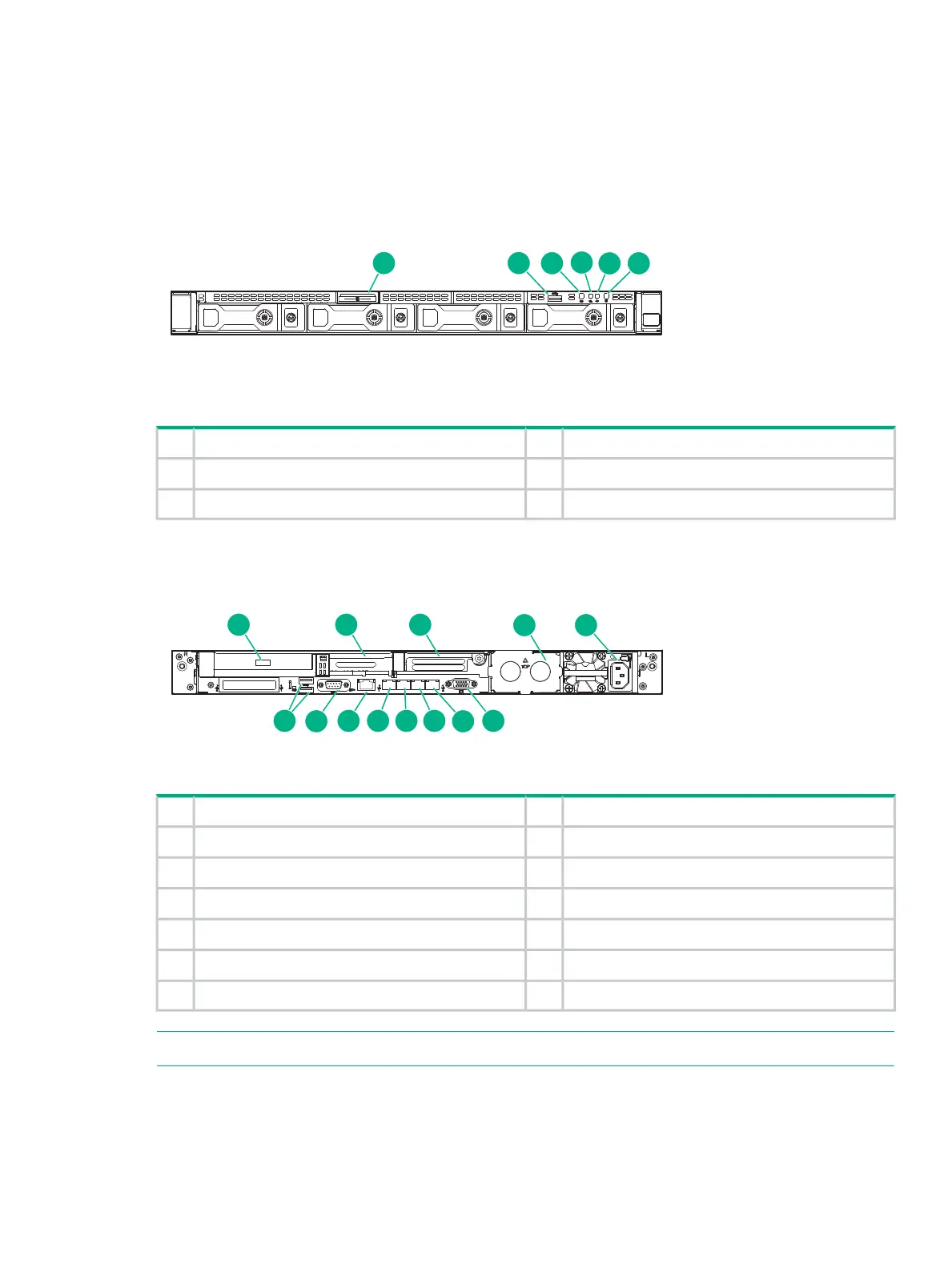

Figure 11 StoreOnce 3100 System front view
1
6
3
5
4
2
USB 3.0 port2Pull out label with serial number1
NIC status LED4UID LED3
Power on/standby button and system power LED6Health LED5
Figure 12 StoreOnce 3100 System rear view
1 2 3
4 5
6
7
8
91011
12
13
Slot 2 (not used)2Slot 1, RAID controller1
Power supply 2 (optional, must be purchased)4Slot 3 (not used)3
Video connector6Power supply 15
1Gb RJ45 Port 381Gb RJ45 Port 47
1Gb RJ45 Port 1 (eth0)101Gb RJ45 Port 29
Serial connector12iLO4 connector11
USB connectors13
NOTE: The base configuration has a single power supply.
StoreOnce 3100 System 55

HP StoreOnce 3100 Specifications

General

Brand	HP
Model	StoreOnce 3100
Category	Storage
Language	English
